Product Description

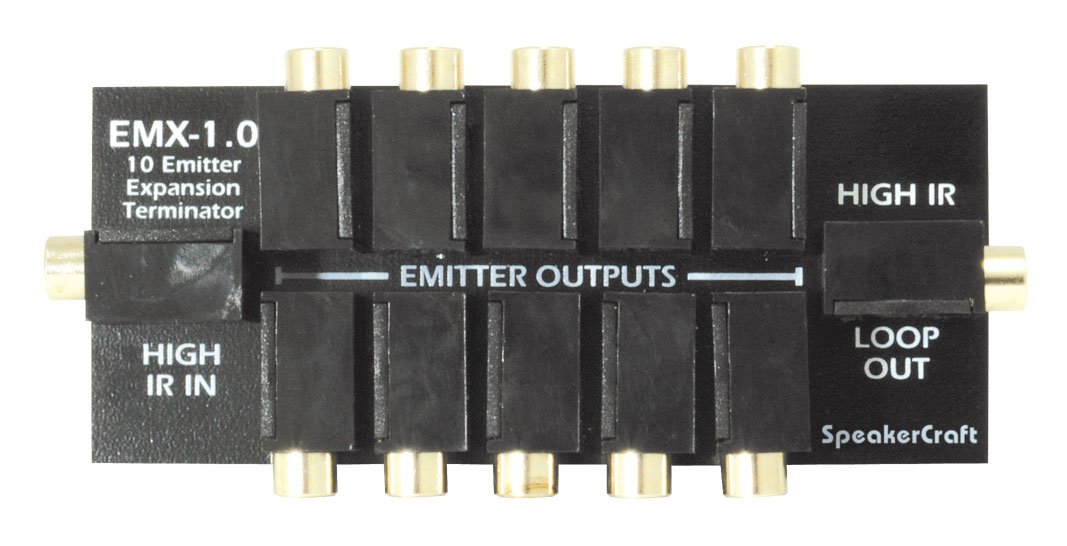

The EMX-1.0 provides a quick and low cost means of expanding the number of emitters that can be driven from a SpeakerCraft AT-1.0 amplified terminator or other high IR output source in IR repeater systems. A passive expander that includes current sharing resistors at each emitter jack, it allows any combination of single or dual emitters to be used. A high IR loop out is provided for daisy chaining additional EMX-1.0’s so that even more emitters can be driven (up to a maximum of 50 emitters).
Features of this Product
- Passive 10-Port Expansion Terminator for Expanding IR Emitter Outputs
- Used in Conjunction with the Connecting Block AT-1.0
- Includes PTP-1.0 (1-Foot 3.5mm Mini Plug-to-Plug Jumper Cable (305 mm)
