SpeakerCraft Smartpath Amplified IR Connecting Block

Lowesst Price Guaranteed Free Shipping
  • Central Terminating Unit for IR System
  • Amplified Circuit for Emitters/Blasters
  • 3.5mm Jack for Connection to IR Receiver
  • EZ Connect Terminal Block
  • Allows for Cascading
  • 12V DC Power Input Jack
  • 5-24V DC Status In Jack
  • DIP Switches for Emitter/Blaster Power
SKU: ELT02100 Categories: , Product Condition: New

Product Description

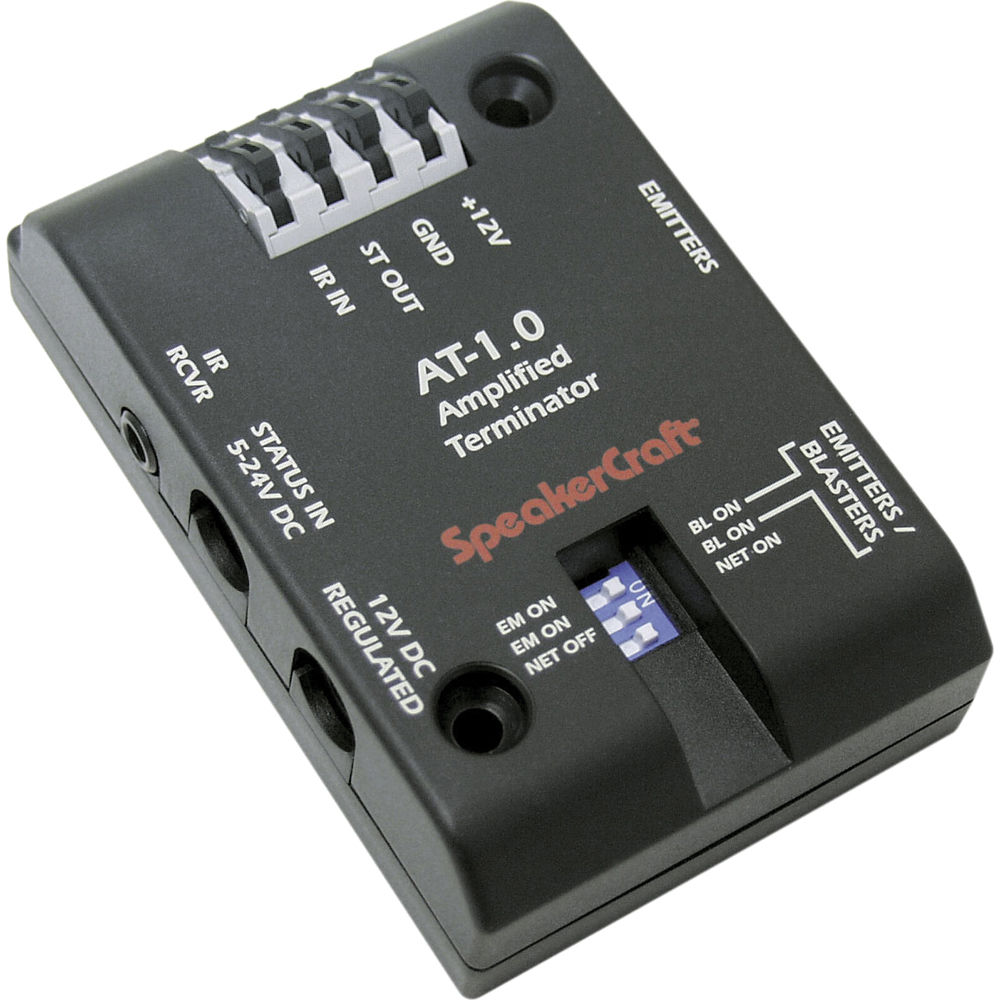

The SpeakerCraft AT – 1.0 Amplified Terminator Unit is a central terminating unit for an infrared system. The unit allows you to connect SpeakerCraft and other compatible IP products in IR repeating systems. It has a wide bandwidth amplifier, blaster drive capability, and is reverse voltage protected.

Spring-loaded EZ-Connect terminals accommodate 14-28AWG wires and the convenient mounting holes allow the unit to be mounted to any flat surface with the 2 included screws. Two 3.5mm jacks drive two emitters at medium power, and two additional 3.5mm jacks drive two emitters at medium power or two blasters at very high power.

The AT.10 Smartpath Amplified Connecting Block provides a convenient means of interconnecting SpeakerCraft infrared products in IR repeating systems. It includes a wide bandwidth amplifier for robust operation. It has blaster drive power capability and is reverse voltage protected. Features: Central Terminating Unit for IR System; Amplified Circuit for Driving Standard Emitters or High Powered Blasters; Features EZ-Connect Terminal Block; May Be Cascaded for Additional Emitter Output Jacks; Unique Quad 3.5mm Mini-Phone Type Jack for Connection to IR Receivers; 12V DC Power Input Jack; 5-24V DC Status In Jack’ DIP Switches to Change Emitter/Blaster Driver Power; and Network Terminating Circuit, DIP Switchable. Requires Regulated 12V Power Supply.

Features of this Product

  • Central Terminating Unit for IR System
  • Amplified Circuit for Driving Standard Emitters or High Powered Blasters
  • Features EZ-Connect Terminal Block
  • May Be Cascaded for Additional Emitter Output Jacks
  • Unique Quad 3.5mm Mini-Phone Type Jack for Connection to IR Receivers
  • 12V DC Power Input Jack
  • 5-24V DC Status In Jack
  • DIP Switches to Change Emitter/Blaster Driver Power
  • Network Terminating Circuit, DIP Switchable
  • Requires Regulated 12V Power Supply

The AT.10 Smartpath Amplified Connecting Block provides a convenient means of interconnecting SpeakerCraft infrared products in IR repeating systems. It includes a wide bandwidth amplifier for robust operation. It has blaster drive power capability and is reverse voltage protected. Features: Central Terminating Unit for IR System; Amplified Circuit for Driving Standard Emitters or High Powered Blasters; Features EZ-Connect Terminal Block; May Be Cascaded for Additional Emitter Output Jacks; Unique Quad 3.5mm Mini-Phone Type Jack for Connection to IR Receivers; 12V DC Power Input Jack; 5-24V DC Status In Jack’ DIP Switches to Change Emitter/Blaster Driver Power; and Network Terminating Circuit, DIP Switchable. Requires Regulated 12V Power Supply.
