Product Description
The ASM56802 can distribute audio from a single source. AIM Series in-ceiling speakers were the first to feature an aimable woofer/tweeter module that aims the sound in any direction you choose.

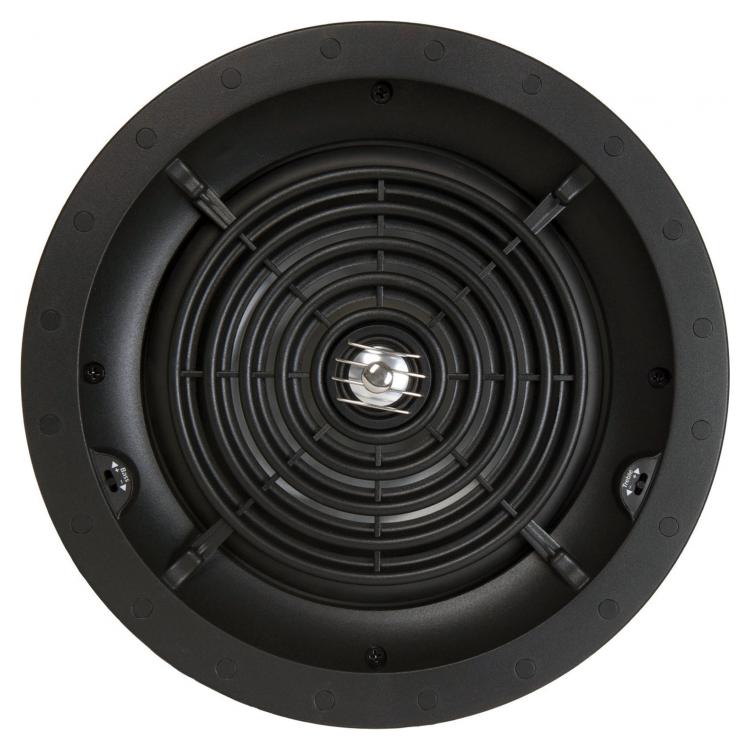

SpeakerCraft Profile CRS8 Three Ceiling Speakers deliver amazing sound quality from a compact, flush-mounted enclosure. Perfect for use in any medium sized room or as part of a multi-room audio system.
Handles up to 100W of power To ensure robust sound. The speaker is timbre-matched to most Two Series speakers (additional speakers not included). 8″ glass-composite-cone woofer Along with a 1″ pivoting, silk-dome tweeter delivers rich cross-spectrum audio. The woofer/tweeter module can be aimed for precise sound direction. Front-mounted switch Enables up to ±3dB of bass and treble adjustment. Flangeless appearance Offers a stylish look. 9-3/4″ cutout diameter Allows easy in-ceiling installation. With an 8″ glass-composite-cone woofer, 1″ pivoting, silk-dome tweeter and WavePlane technology, this SpeakerCraft AIM Series Profile CRS8 Two ASM56802 in-ceiling speaker produces a crisp, dynamic soundscape.
Handles up to 100W of power
To ensure robust sound. The speaker is timbre-matched to most Two Series speakers (additional speakers not included).
8″ glass-composite-cone woofer
Along with a 1″ pivoting, silk-dome tweeter delivers rich cross-spectrum audio. The woofer/tweeter module can be aimed for precise sound direction.
Front-mounted switch
Enables up to ±3dB of bass and treble adjustment.
Flangeless appearance
Offers a stylish look.
9-3/4″ cutout diameter
Allows easy in-ceiling installation.
Featuring identical drivers and performance to their CRS counterparts, the Custom Square Series, or CSS, speakers simply present these elements in a square baffle. Many designers and installers prefer this physical format in certain installations due to architectural or other aesthetic considerations. Most of the CRS/CSS speakers feature our patented WavePlane tweeter baffle, which improves both dispersion and highfrequency performance. Most of the CRS/CSS also offer pivoting tweeters and adjustable woofer and/or tweeter levels for fine-tuning the system during trim out.
Features of this Product
- 8″ Glass Composite Cone Woofer
- Pivoting 1″ Silk Dome Tweeter
- Front-Mounted Switch Allows for up to ±3dB of Bass and Treble Adjustment
- Timbre-Matched to All Two Series Speakers
- Sensitivity: 90dB 1W/1m
- Power Handling: 100 Watts
- Impedance: 8/6/4 Ohms, Depending on Switch Settings
- Frequency Response: 40Hz – 20kHz
