Product Description

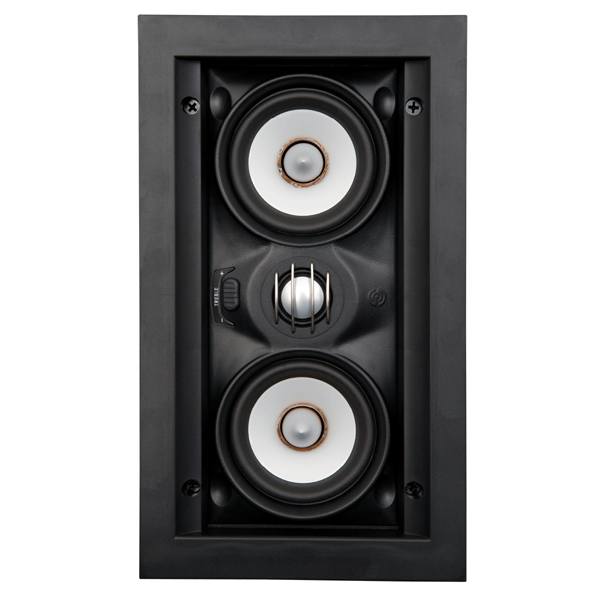

The ASM54633 AIM LCR5 Three In-Wall Speaker Home Cinema Speakers from SpeakerCraft has been designed to blend seamlessly with all SpeakerCraft architectural in-wall and in-ceiling speakers. This speaker produces both left and right channels and can complete a multi-room system throughout the home.
AIM Series in-ceiling speakers were the first to feature an aimable woofer/tweeter module that aims the sound in any direction you choose. No longer are you bound by the design of your room. Just mount the speakers wherever it’s convenient and point them wherever you want sound. Profile grilles are available in AIM8, AIM7 and AIM5 models. AIM LCR speakers deliver powerful, compelling home theater sound in slim, easy-to-mount in-wall models. The front baffles tilt so you can aim the sound exactly where you want it. AIM LCR and AIM LCR3 models are available with Profile grilles as an option.
AIM Series in-ceiling speakers were the first to feature an aimable woofer/tweeter module that aims the sound in any direction you choose. No longer are you bound by the design of your room. Just mount the speakers wherever it’s convenient and point them wherever you want sound. Profile grilles are available in AIM8, AIM7 and AIM5 models.
Features of this Product
- Flangeless Appearance
- Pivoting Woofer Baffle
- Two 5 1⁄4″ Aluminum/Magnesium Cone Woofers with Phase Plugs
- Pivoting 1″ Aluminum/Magnesium Dome Tweeter
- Front-Mounted Switches Allow for up to ±3dB of Bass and Treble Adjustment
- Timbre-Matched to All Three/Four Series Speakers
- Sensitivity: 90dB 1W/1m
- Power Handling: 100 Watts
- Impedance: 8/6 Ohms, Depending on Switch Settings
- Frequency Response: 50Hz – 20kHz
- Dimensions: (H x W x D) 17 1⁄8″ x 9″ x 4″ (235 mm x 443 mm x 102 mm) (with Grille)
- Wall Cut-Out: (H x W) 7 1⁄2″ x 14 1⁄4″ (190 mm x 362 mm)
-
Sensitivity: 90dB 1W/1mPower Handling: 100 WattsImpedance: 8/6 Ohms, Depending on Switch SettingsFrequency Response: 50Hz – 20kHz
