Product Description

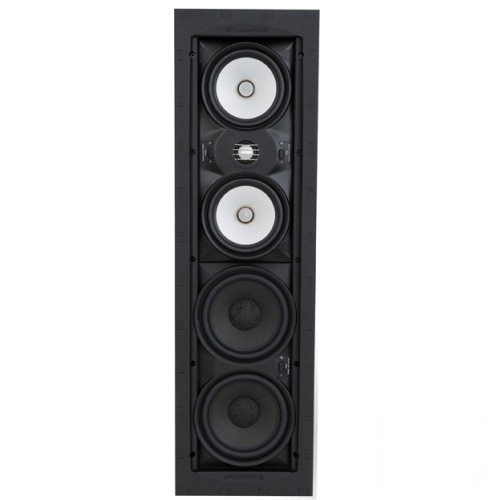

The ASM59103 AIM Home Cinema Three Speakers from SpeakerCraft has been designed to blend seamlessly with all SpeakerCraft architectural in-wall and in-ceiling speakers. This speaker produces both left and right channels and can complete a multi-room system throughout the home.
AIM Series in-ceiling speakers were the first to feature an aimable woofer/tweeter module that aims the sound in any direction you choose. No longer are you bound by the design of your room. Just mount the speakers wherever it’s convenient and point them wherever you want sound. Profile grilles are available in AIM8, AIM7 and AIM5 models.
With the flat-panel revolution changing the way we watch TV, customers are looking for elegant ways to improve the audio side of the equation as well. The AIM LCR series is a flush-mounted in-wall with dual woofers in a fully pivoting baffle in a D’Apolito configuration bracketing a pivoting tweeter. Designed to mount vertically or horizontally, the AIM LCRs will fit sideways in a standard stud bay.
The AIM LCR’s create a spectacular soundstage for music or film with the ability to produce every nuance of a performance. Their pivoting baffles allow them to be toed-in from left and right and adjusted vertically if in the horizontal position.
Features of this Product
- Flangeless Appearance
- Pivoting 1″ Aluminum Dome Tweeter
- Two 5¼” Aluminum Cone Woofers with Phase Plugs
- Two 6″ Kevlar® Impregnated Paper Cone Woofers
- Front-Mounted Treble, Mid & Bass Adjustment Switches
- Bi-Amping Feature
- Timbre-Matched to All Three Series Speakers
- Sensitivity: 90dB 1W/1m
- Power Handling: 175 Watts
- Impedance: 8 Ohms Compatible
- Frequency Response: 39Hz – 20kHz
- Dimensions: (H x W x D) 30 1⁄4″ x 9″ x 4″ (768 mm x 229 mm x 102 mm) (with Grille)
- Wall Cut-Out: (H x W) 28 3⁄4″ x 7 1⁄2″ (730 mm x 191 mm)
- Bi-Amping Feature
- Timbre-Matched to All Three Series Speakers
- Sensitivity: 90dB 1W/1m
- Power Handling: 175 Watts
