Product Description

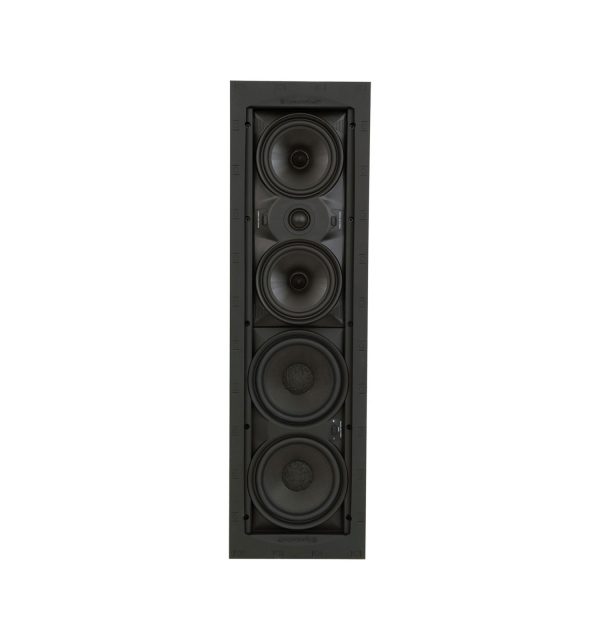

The ASM59101 AIM Home Cinema One Speakers from SpeakerCraft has been designed to blend seamlessly with all SpeakerCraft architectural in-wall and in-ceiling speakers. This speaker produces both left and right channels and can complete a multi-room system throughout the home.
AIM Series in-ceiling speakers were the first to feature an aimable woofer/tweeter module that aims the sound in any direction you choose. No longer are you bound by the design of your room. Just mount the speakers wherever it’s convenient and point them wherever you want sound. Profile grilles are available in AIM8, AIM7 and AIM5 models.
With the flat-panel revolution changing the way we watch TV, customers are looking for elegant ways to improve the audio side of the equation as well. The AIM LCR series is a flush-mounted in-wall with dual woofers in a fully pivoting baffle in a D’Apolito configuration bracketing a pivoting tweeter. Designed to mount vertically or horizontally, the AIM LCRs will fit sideways in a standard stud bay.
Features of this Product
- Flangeless Appearance
- Pivoting 1″ Silk Dome Tweeter
- Two 5¼” Injection Molded Graphite Cone Woofers with Phase Plugs
- Two 6″ Kevlar® Impregnated Paper Cone Woofers
- Front-Mounted Bass Adjustment Switch
- Bi-Amping Feature
- Timbre-Matched to All One Series Speakers
- Sensitivity: 89dB 1W/1m
- Impedance: 8 Ohms Compatible
- Frequency Response: 40Hz – 20kHz
- Dimensions: (H x W x D) 30 1⁄4″ x 9″ x 4″ (768 mm x 229 mm x 102 mm) (with Grille)
- Wall Cut-Out: (H x W) 28 3⁄4″ x 7 1⁄2″ (730 mm x 191 mm)
- Two 5¼” Injection Molded Graphite Cone Woofers with Phase Plugs
- Two 6″ Kevlar® Impregnated Paper Cone Woofers
- Front-Mounted Bass Adjustment Switch
- Bi-Amping Feature
