Product Description

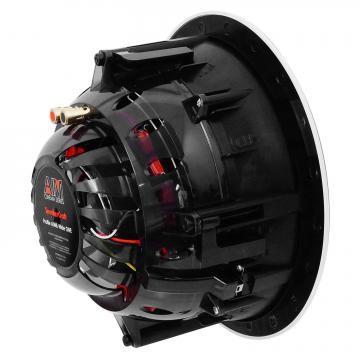

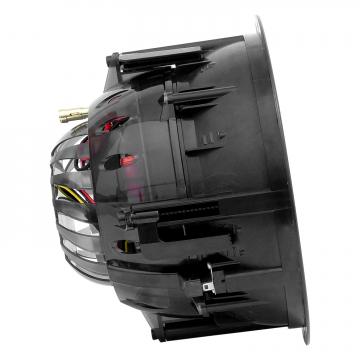

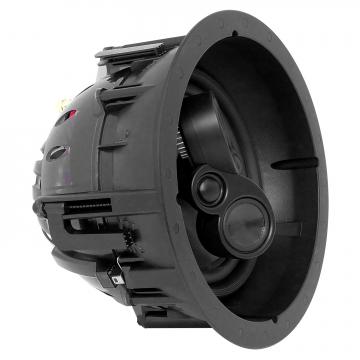

SpeakerCraft PROFILE AIM8 WIDE ONE | ASM50811-2
Wide Dispersion Speaker
The Profile AIM WIDE Series features fully pivoting woofers and unique dual midrange-tweeter module. The midrange-tweeter module is mounted directly over the woofer with dual, 2” dome midrange drivers and dual 1” tweeters facing 70 degrees off axis from each other. The result is ultra-wide sound dispersion with tremendous fidelity — the perfect design for home theater applications including side channels, rear channels, or height channels. They also perform equally well in multi-room general applications where ultra-wide dispersion is needed.
SpeakerCraft PROFILE AIM8 WIDE ONE | ASM50811-2 Features at a Glance
- 3-Way, Fully Pivoting In-Ceiling Speaker featuring an 8” Woofer, Dual 2” Midranges and Dual 3/4” Tweeters
- Flangeless Appearance with Magnetically Attached Full Coverage Steel Grille
- Pivoting 8” Graphite Cone Woofer
- Dual 2” Graphite Inverted Dome Midrange Drivers
- Dual 3/4” Silk Dome Tweeters
- Front-Mounted Ambient/Wide Switch
- Timbre-Matched to All ONE Series Speakers
- Sensitivity: 88dB 1W/1m
- Power Handling: 125 Watts
- Impedance: 8 Ohm Compatible
- Frequency Response: 40Hz – 20kHz
- Diameter x Depth: 11 7/16” x 6 1/2” (291mm x 165mm)
- Cut-Out Diameter: 9 3/4” (248mm)
