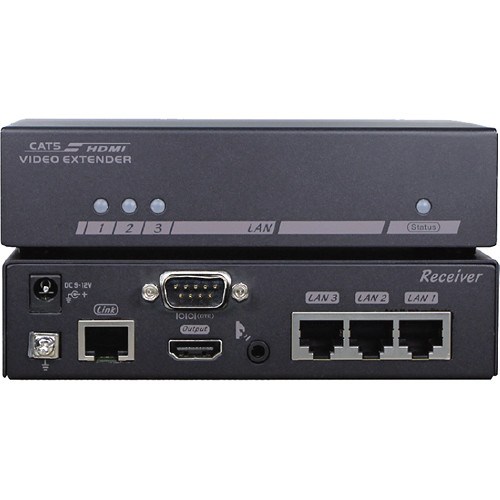

Optoma Technology EVBMN-M110 HDBaseT HDMI Over CAT5 Extender

Lowesst Price Guaranteed Free Shipping
  • Greatly reduces projector installation cost. Use low cost, easy to run CAT5e/6 cable
  • Transmits full, uncompressed HD 1080p video, audio and control over single cable
  • Simultaneously carries HDMI, bidirectional IR, RS-232 and up to 3 LAN lines to a projector up to 328 ft. away
  • Supports HDMI 1.4a, Full 3D HD, HDCP compliant
  • Supports phantom power – single power adapter at either end powers both, receiver and transmitter units
SKU: EVBMN-M110 Category: Product Condition: New Brand:

Product Description

The Optoma EVBMN-M110 HDBaseT transmitter / receiver pair sends full, uncompressed HD 1080p video, audio, IR, bidirectional RS-232 control and up to 3 Ethernet connections over a single CAT5e/6 cable to a projector over 328 ft away.

The Optoma EVBMN-M110 HDBaseT transmitter / receiver pair greatly reduces projector installation cost by eliminating the need for expensive cable runs. Compact in size, easy to setup, and requires no special calibration.

The EVBMN-M110 HDBAseT HDMI Over CAT5 Extender with IR by Optoma will greatly reduce your projector installation cost. It transmits full, uncompressed HD 1080p video, audio and control over a single cable while simultaneously carrying HDMI, bidirectional IR, RS-232 and up to 3 LAN lines to a projector up to 328 ft. away. It also features phantom power a single power adapter at either end power both the receiver and transmitter units. Simplify your projector setup with this extender.

  • Transmits full, uncompressed HD 1080p video, audio and control over single cable
  • Simultaneously carries HDMI, bidirectional IR, RS-232 and up to 3 LAN lines to a projector up to 328 ft. away
  • Supports HDMI 1.4 Amp, full 3D HD, HDCP compliant
  • Greatly reduces projector installation cost
  • Supports phantom power single power adapter at either end powers both, receiver and transmitter units

Reviews

There are no reviews yet.

Add a review

Projection System DLP
Native Resolution 1080p (1920 x 1080)
Brightness* 2200 ANSI Lumen
Contrast Ratio Contrast Ratio (FOFO) : 10000:1
Display Color (ANSI) : 500:1
Display Color 1.07 Billion Colors
Lens F= 2.6-2.78, f=10.2-12.24mm
Aspect Ratio Native 16:9 (5 aspect ratio selectable)
Throw Ratio 0.69-0.83 (65.7″@ 1M)
Image Size (Diagonal) 38″-300″
Zoom Ratio 1.2:1
Lamp Type 240W
Lamp (Normal/Economic Mode)* 3500/5000/6000 hours
Keystone Adjustment 2D, Vertical & Horizontal +/- 20 degrees
Projection Offset Vertical 105%~±5%
Resolution Support VGA(640 x 480) to WUXGA_RB(1920 x 1200) *RB=Reduced blanking
Horizontal Frequency 15K-102KHz
Vertical Scan Rate 23-120Hz
Interface Video Compatibility NTSC, PAL, SECAM, SDTV Computer in (D-sub 15pin) x 1
HDMI x 2
MHL x 1 (shared with HDMI2)
Composite Video in (RCA) x 1
Component Video in x 1
Audio in (Mini Jack) x 1
Audio L/R in (RCA) x 1
Audio out (Mini Jack) x 1
Chamber Speaker 10W x 1
USB (Type A) x1 (for 1.5V power supply)
USB (Type Mini B) x1 (for service)
RS232 (DB-9pin) x 1
DC 12V Trigger x 1
Dimensions(W x H x D) 312x104x244 mm
HDTV Compatibility 480i, 480p, 576i, 567p, 720p, 1080i, 1080p
Video Compatibility NTSC, PAL, SECAM, SDTV
Weight 2.85KG
Audible Noise 31/28 dBA (Normal/Economic mode)
Power Supply AC100 to 240 V, 50 to 60 Hz
Power Consumption 353W/110V (typical), Standby < 0.5W On-Screen Display Languages Arabic/Bulgarian/ Croatian/ Czech/ Danish/ Dutch/ English/ Finnish/ French/ German/ Greek/ Hindi/ Hungarian/ Italian/ Indonesian/ Japanese/ Korean/ Norwegian/ Polish/ Portuguese/ Romanian/ Russian/ Simplified Chinese/Spanish/ Swedish/ Turkish/ Thai/ Traditional Chinese (28 Languages) Accessories (Standard) Remote Control w/ Battery Power Cord (by region) User Manual CD Quick Start Guide Warranty Card (by region) Lens cover Accessories (Optional) Spare Lamp Kit P/N: 5J.J9H05.001 Ceilling Mount P/N: 5J.J4N10.001 3D Glasses P/N: 5J.J7L25.002 Carry Bag P/N: 5J.J3T09.001 Wireless FHD Kit P/N: 5J.J9H28.A01
