Optoma 4K100TX Super Flexible HDBaseT Transmitter

Product Description

Available now, the 4K100TX is compatible with all Optoma HDBaseT™ enabled projectors. It integrates seamlessly with any HDMI enabled source device and delivers uncompressed UHD (70m) or Full HD (100m) video and audio via one CAT cable (CAT6A recommended).

It is super flexible thanks to its HDMI loop out which allows cascading and connection to an additional receiver or display.  This means content can be viewed on multiple display devices without the need for HDMI splitters or other distribution equipment.

James Fursse, VSS Technical Product Manager at Optoma Europe, commented: “The 4K100TX HDBaseT™ transmitter simplifies transmission of uncompressed UHD and Full HD video and audio through long distances via a single CAT type cable.

“We decided to launch our own HDBaseT™ transmitter with all of the features we know our customers will use, such as flexible control system integration with IR, RS232 and LAN pass through. It gives peace of mind there will be no compatibility issues.”

Key Features– 4K100TX HDBT™ transmitter

• Guaranteed compatibility – comprehensively tested with for reliable installation with Optoma HDBaseT™ enabled projectors
• Delivers 4K UHD (up to 70m) and extends 1080p (up to 100m) through a single CAT cable

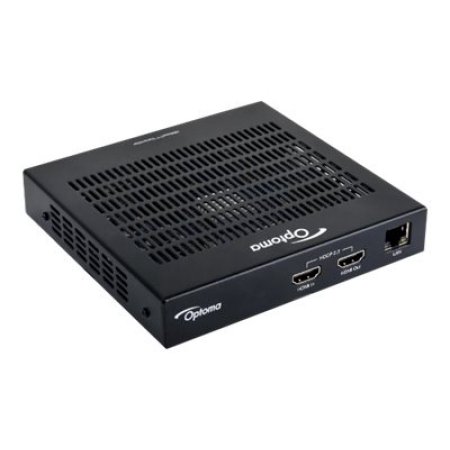

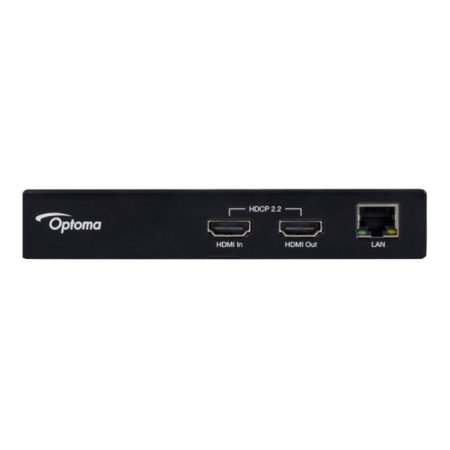

• HDMI loop out allowing other display devices to connect without additional equipment

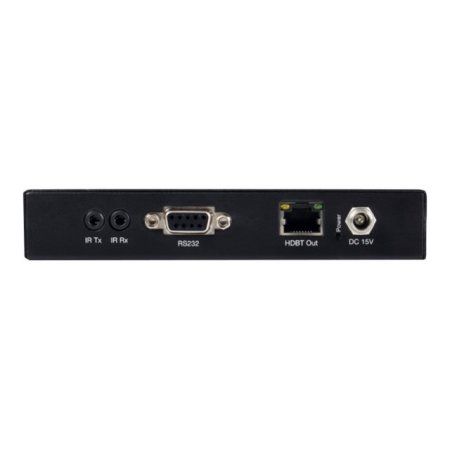

• Features IR, RS232, LAN pass through for integration and control flexibility

Specifications

DIMENSIONS & WEIGHT

• Width
  5.3 in
• Depth
  4.5 in
• Height
  0.9 in

HEADER

• Brand
  Optoma
• Product Line
  Optoma
• Model
  4K100TX
• Packaged Quantity
  1

GENERAL

• Manufacturer
  Optoma

Projection System DLP
Native Resolution 1080p (1920 x 1080)
Brightness* 2200 ANSI Lumen
Contrast Ratio Contrast Ratio (FOFO) : 10000:1
Display Color (ANSI) : 500:1
Display Color 1.07 Billion Colors
Lens F= 2.6-2.78, f=10.2-12.24mm
Aspect Ratio Native 16:9 (5 aspect ratio selectable)
Throw Ratio 0.69-0.83 (65.7″@ 1M)
Image Size (Diagonal) 38″-300″
Zoom Ratio 1.2:1
Lamp Type 240W
Lamp (Normal/Economic Mode)* 3500/5000/6000 hours
Keystone Adjustment 2D, Vertical & Horizontal +/- 20 degrees
Projection Offset Vertical 105%~±5%
Resolution Support VGA(640 x 480) to WUXGA_RB(1920 x 1200) *RB=Reduced blanking
Horizontal Frequency 15K-102KHz
Vertical Scan Rate 23-120Hz
Interface Video Compatibility NTSC, PAL, SECAM, SDTV Computer in (D-sub 15pin) x 1
HDMI x 2
MHL x 1 (shared with HDMI2)
Composite Video in (RCA) x 1
Component Video in x 1
Audio in (Mini Jack) x 1
Audio L/R in (RCA) x 1
Audio out (Mini Jack) x 1
Chamber Speaker 10W x 1
USB (Type A) x1 (for 1.5V power supply)
USB (Type Mini B) x1 (for service)
RS232 (DB-9pin) x 1
DC 12V Trigger x 1
Dimensions(W x H x D) 312x104x244 mm
HDTV Compatibility 480i, 480p, 576i, 567p, 720p, 1080i, 1080p
Video Compatibility NTSC, PAL, SECAM, SDTV
Weight 2.85KG
Audible Noise 31/28 dBA (Normal/Economic mode)
Power Supply AC100 to 240 V, 50 to 60 Hz
Power Consumption 353W/110V (typical), Standby < 0.5W
On-Screen Display Languages Arabic/Bulgarian/ Croatian/ Czech/ Danish/ Dutch/ English/ Finnish/ French/ German/ Greek/ Hindi/ Hungarian/ Italian/ Indonesian/ Japanese/ Korean/ Norwegian/ Polish/ Portuguese/ Romanian/ Russian/ Simplified Chinese/Spanish/ Swedish/ Turkish/ Thai/ Traditional Chinese (28 Languages)
Accessories (Standard) Remote Control w/ Battery
Power Cord (by region)
User Manual CD
Quick Start Guide
Warranty Card (by region)
Lens cover
Accessories (Optional) Spare Lamp Kit P/N: 5J.J9H05.001
Ceilling Mount P/N: 5J.J4N10.001
3D Glasses P/N: 5J.J7L25.002
Carry Bag P/N: 5J.J3T09.001
Wireless FHD Kit P/N: 5J.J9H28.A01
