Product Description
Enjoy a true 3-channel soundstage with the MartinLogan Motion SLM X3 Passive Soundbar. It features a 2-way design on each channel with three discrete binding post pairs for connecting to your receiver. Overall, it has three 1 x 1.4″ Folded Motion transducers and six 4″ paper cone woofers, and accepts 20 to 140W of amplifier power. The soundbar has a 120 Hz to 23 kHz frequency response and includes a wall mount bracket and a tabletop stand assembly for installation versatility.
Slim Design

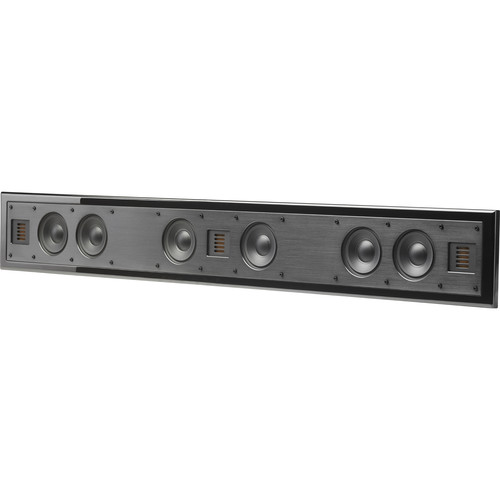

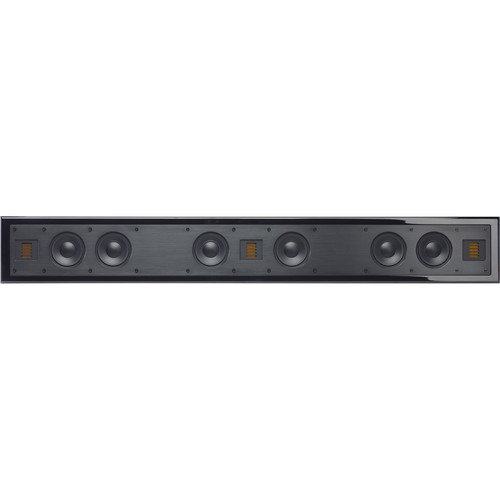

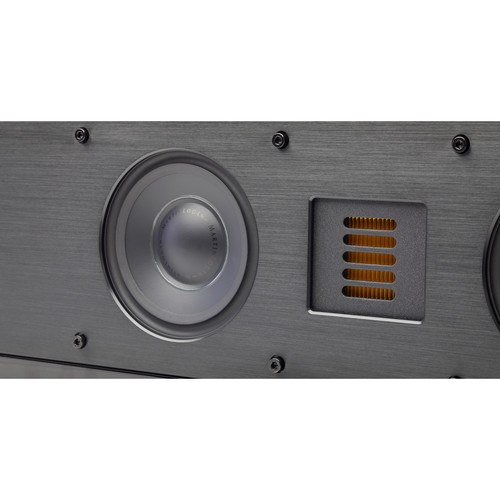

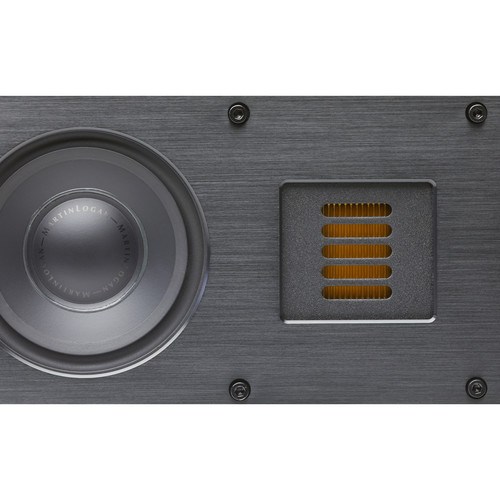

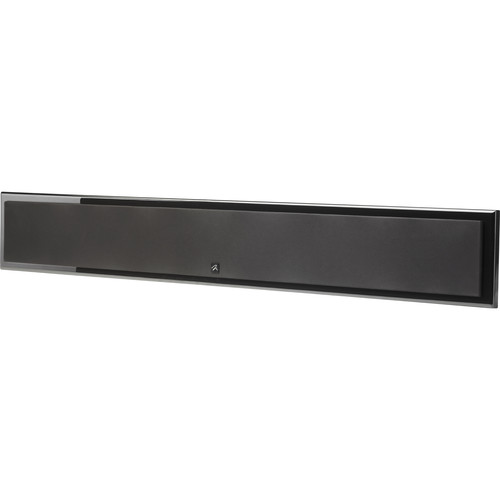

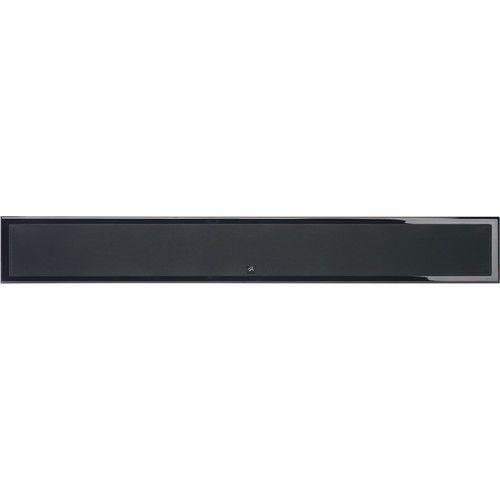

The 3-channel soundbar design of the Motion SLM X3 has three Folded Motion tweeters and six 4″ fiber cone woofers to create a soundstage similar to that of a full speaker system. Hidden discreetly under the grille, the drivers are held in place by a black-anodized brushed aluminum baffle mounted flush within the speaker’s glossy black cabinet. The speaker is less than 2″ deep when installed on the wall with the magnetic grille and low-profile wall mount bracket.
Designed to Match Flat-Screen Displays

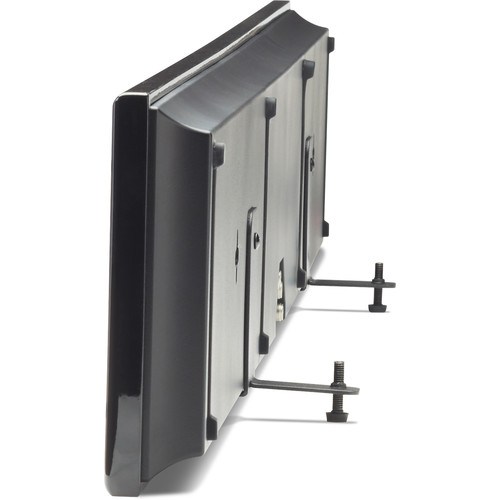

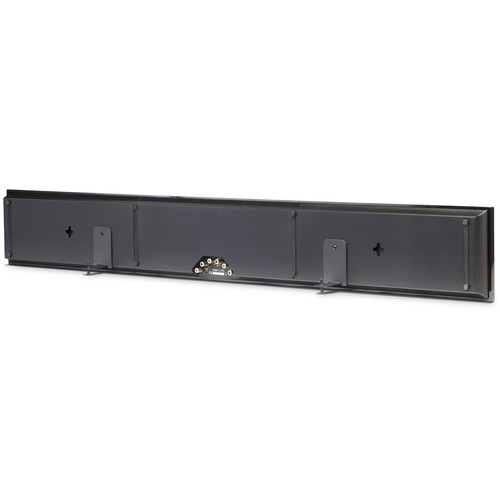

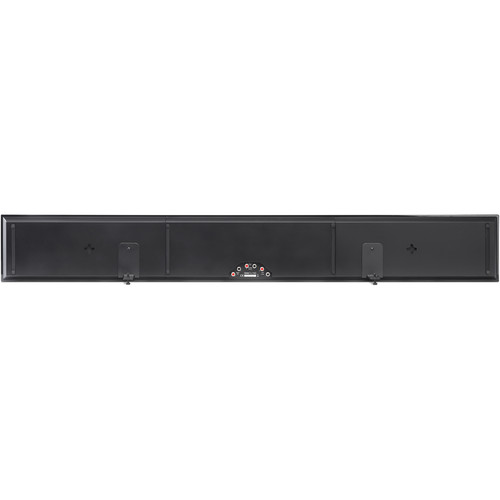

For applications where on-wall installation is not an option, the SLM X3 includes “kick-stand” brackets that attach to the back of the speaker, allowing it to free-stand beneath a display.
MartinLogan SLM X3 Specs
Speaker Design | 3-channel, 2-way |
High Frequency Drivers | 3x 1 x 1.4″ (2.6 x 3.6 cm) Folded Motion transducers with 5.25 x 1.75″ (13.3 x 4.4 cm) diaphragms |
Low Frequency Drivers | 6x 4″ (10.2 cm) paper cone woofers |
Sound Dispersion | 80 x 80° |
Sensitivity | 93 dB/2.83 V/m |
Recommended Amplifier Power | 20 to 140 W |
Maximum Input Power | 70 W |
Impedance | 4 Ohms, compatible with 4, 6, or 8 Ohm rated amplifiers |
Crossover Frequency | 3000 Hz |
Frequency Response ± 3dB | 120 Hz to 23 kHz |

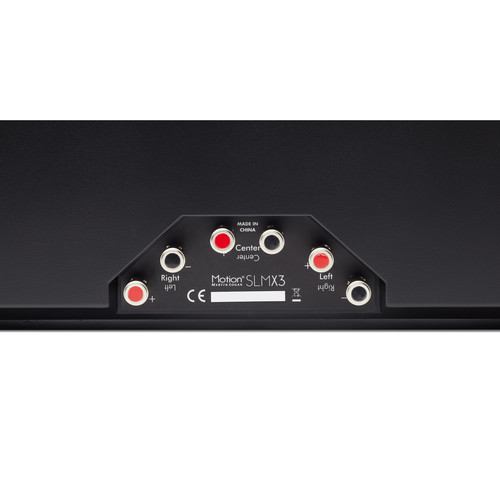

Terminals | 3 x push-style binding post pairs |
Cabinet Style | Sealed |
Components | Air-core coil inductors
Polyester film capacitors in series and low-DF electrolytic capacitors in parallel Overall system thermal/current protection |
Dimensions (W x H x D) | 48 x 6.3 x 2″ (122 x 16.2 x 5.1 cm) |
Weight | 13 lb (5.9 kg) |
Packaging Info | |
---|---|
Package Weight | 17.45 lb |
Box Dimensions (LxWxH) | 51.5 x 12.0 x 5.5″ |
