Product Description
All MartinLogan Motion CI Series speakers feature our signature Folded Motion Tweeter or FMT. This innovative piece of audio technology provides incredible detail, precise clarity, clean output and high efficiency in a small but mighty package. Pairing this tweeter with lightweight woven fiberglass woofers means that Motion CI delivers a clean and balanced sound that is perfectly suited for any application. Whether you listen to music, movies or a little bit of everything, Motion CI gives you a true high-end audio experience at an affordable price. To round out the assortment, pre-construction brackets are available for all models, and all in-ceiling models have square grilles and retrofittable back enclosures available separately.
The Sound of Invisibility:

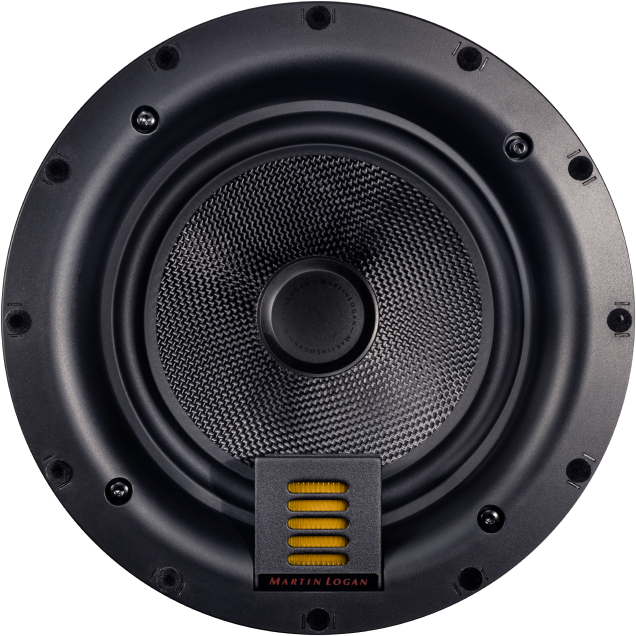

Folded Motion® Tweeters
MartinLogan’s signature Folded Motion Tweeter utilizes an extremely low-mass diaphragm that “squeezes” air, thus requiring significantly less excursion than the typical 1-inch dome tweeter. Its folded design allows for a much larger surface area (compared to that of a regular 1-inch dome tweeter), controlled dispersion characteristics, and vanishingly low distortion. It’s a miracle of audio engineering that delivers much of the high-frequency detail, speed and response of a large, dynamic electrostatic panel in a small space.
This thin-film transducer design packs all the accuracy and delicacy of an electrostatic panel into a small space. Folding the dramatically lightweight film into an accordion-like structure increases the surface area, giving Folded Motion tweeters eight to ten times greater surface area than typical tweeters. This ideal combination of light and large produces superior accuracy, extended frequency bandwidth and higher output capability; all with a faster, more efficient transient response, and virtually zero distortion. In these characteristics, the Folded Motion Tweeter design can mimic the performance of a large electrostatic panel in the confines of a more traditional loudspeaker enclosure.
Spring-Loaded Binding Posts
With easy pre-installation access, our spring-loaded binding posts feature a large 4.5mm wire access hole and connect via banana plug, pin, or 12AWG bare wire.

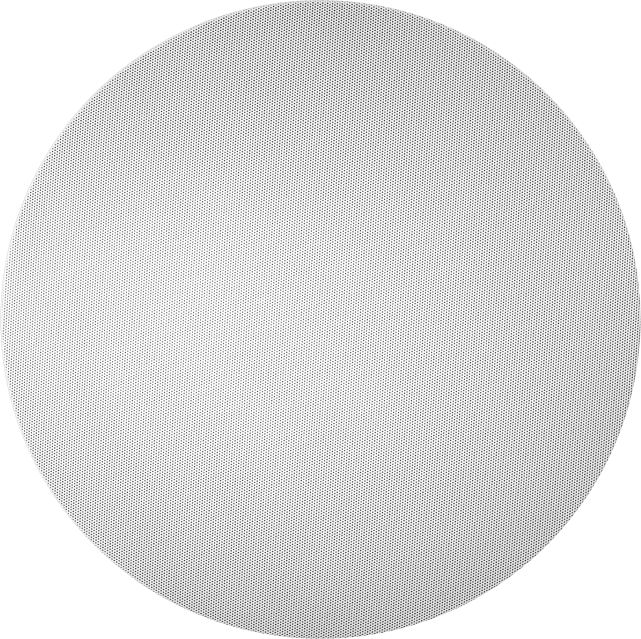

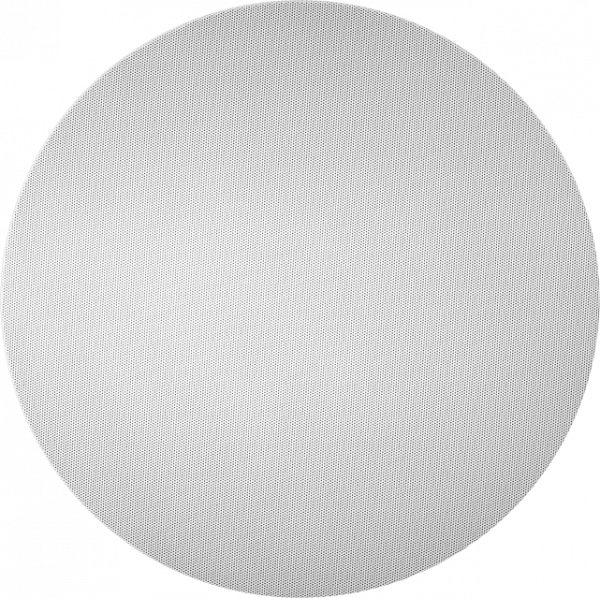

Micro-Perforated Grilles
MC8 features an ultra-low profile, paintable, micro-perforated grilles with no visible bezel for a near-invisible integration into any wall or ceiling. A series of powerful magnets hidden inside the speaker quickly secure grilles into place, reducing the risk of warping or damage during installation. Optional square grilles are available for the MC8.

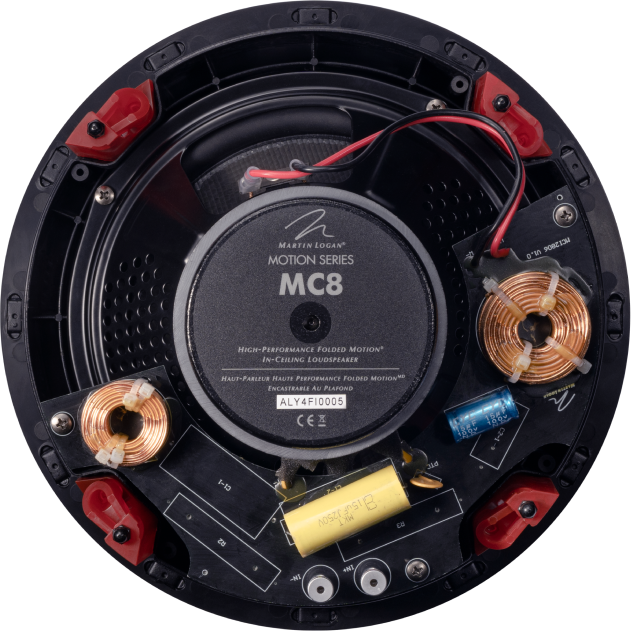

Hand-Selected Components
In designing each crossover topology, we take the drivers themselves into consideration. Carefully selected drivers, engineered for specific performance characteristics, are kept within their optimal frequency range by the custom Vojtko Crossover.
Each crossover is handcrafted using exceptional polypropylene and polyester capacitors, custom wound and large steel laminate low-DCR inductors, and double thick PCBs. This precision-tuned network preserves even the most microscopic sonic nuances while handling the full dynamics of any source. It’s a recipe for vanishingly low distortion and seamless driver integration.
The most critical aspect of a Vojtko Crossover design is the final voicing, always conducted in a real-world environment. This uniquely pragmatic approach guarantees that even the most amazing MartinLogan loudspeakers deliver Truth in Sound in any room, including yours.
Optional Retrofit Enclosure
All Motion CI in-ceiling speakers have the option for a retrofittable back can or enclosure. This helps contain the sound coming off the back of the speaker to dramatically reduce unwanted sound that can travel through the floor and up into the living space above the speaker. For those desiring increased bass output, or for when sound control is not required, you can simply choose to use the MC8 without the optional enclosure so it can take full advantage of the larger air volume provided by the space in the ceiling.
Pre-Installation Brackets
(sold separately)
Pre-installation brackets are available for every model in the Motion CI Series.
