Product Description

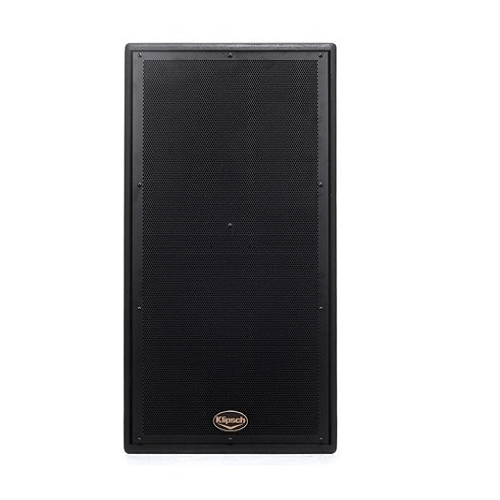

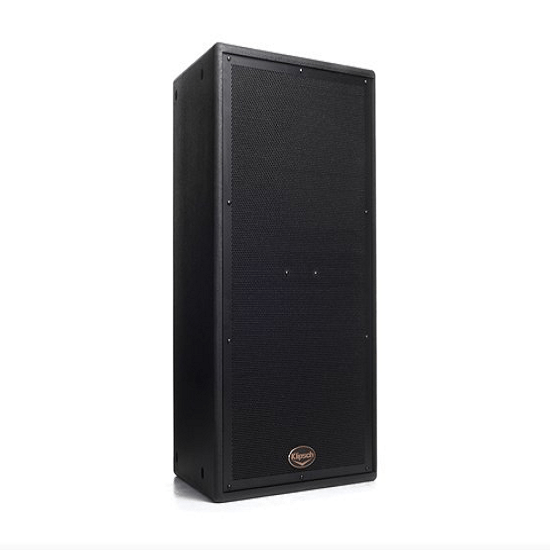

The Klipsch KI-362-SMA-II is three-way 22.5º trapezoidal speaker system that
is ideally suited for suspended permanent install applications in small to
medium sized venues. The full-range system delivers high SPL output with high
intelligibility, in a cost effective solution.

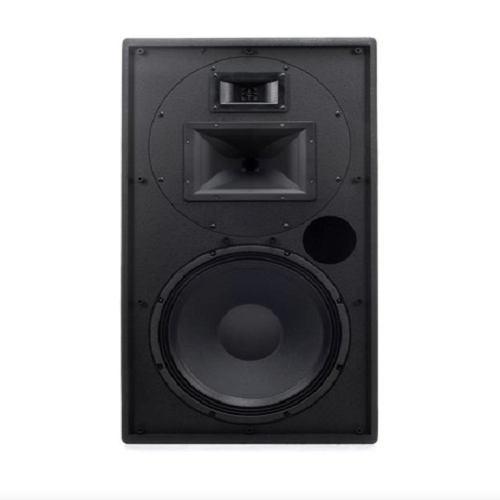

The KI-362-SMA-II utilizes a modified Tractrix® horn geometry in a well defined
90º X 60º coverage. To permit use at any mounting angle the midrange and
high-frequency drivers are adjustable in 45º increments allowing the 60º or 90º
projection patterns to be chosen independent of the orientation of the enclosure.
All components are housed in a rugged birch plywood enclosure with aesthetically
profiled edges and a tough durable finish. The KI-362-SMA-II has 16 suspension
points (4 per side) for flexible mounting and rigging bar compatibility.
FEATURES
- Compact 22.5º symmetrical trapezoidal design
- User-rotatable midrange and HF module for optimized pattern control
- 16 suspension points for (4 per side) for flexible mounting and rigging bar compatibility
- 15” cast frame heavy-duty woofer
- 1.5” and 1” titanium midrange and high-frequency compression drivers
- Internal high current full-range crossover
- KLIP circuit Mid and HF driver protection device
- Available in Black, White or Raw Birch finish
Features & Specifications
| Weight | 31.8 kg |
|---|---|
| Color | Black |
| Choose One | Single Speaker |
| Specifications | – Type Trapezoidal 15″ 3-way loudspeaker
– Frequency response 54 Hz – 20 kHz (-10 dB @ 38 Hz) – Power handling 400 watts (42V) – 1600 watts peak – Maximum SPL 124 dB Continuous – 130 dB Peak – Sensitivity 101 dB – Coverage Horizontal: 90° +/- 30º 400 Hz – 16 kHz – Vertical: 50° +/- 20º 2.8 kHz – 20 kHz – Directivity index (DI) 8 dB +/- 2 dB 500 Hz – 20 kHz – Directivity factor (Q) 6.3 – Nominal impedance 8 ohms, minimum 4.4 ohms @ 106 Hz – Overload protection KLIP Overload Protection Circuit-HF – Crossover frequency 1.26 kHz and 6.8 kH – Components One K-48-ST 15″ woofer – One K-53-TI 1.5” titanium compression driver on a K-703-M horn – One K-100-TI 1” titanium compression driver on a K-79-T horn – Input connection Two point barrier strip – Mounting options Sixteen 3/8”-16 flypoints – Bracket mount One attachment point for C-bracket – Top and Bottom: 3/8”-16 – Enclosure material 3/4″ 7-ply birch plywood cabinet – 1” MDF motorboard – Height 34.3” (87.12cm) – width 19.8” (50.29cm) front / 6.8” (17.27cm) rear – Depth 16” (40.64cm) – Weight 70 lbs. (31.81kg) – Finish White |
