Product Description

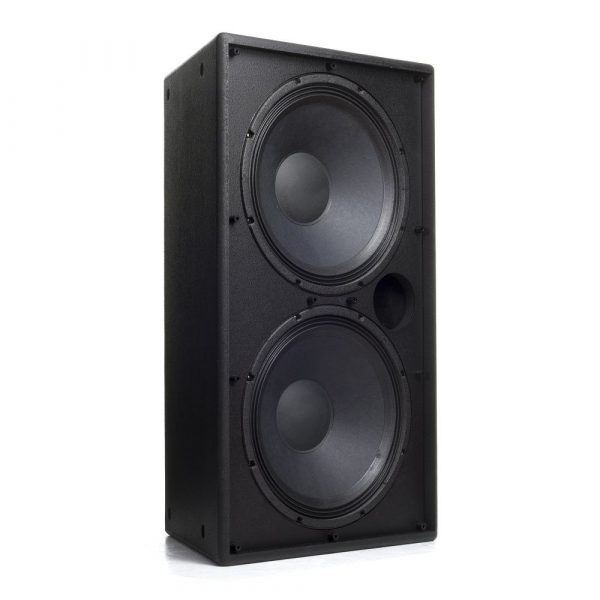

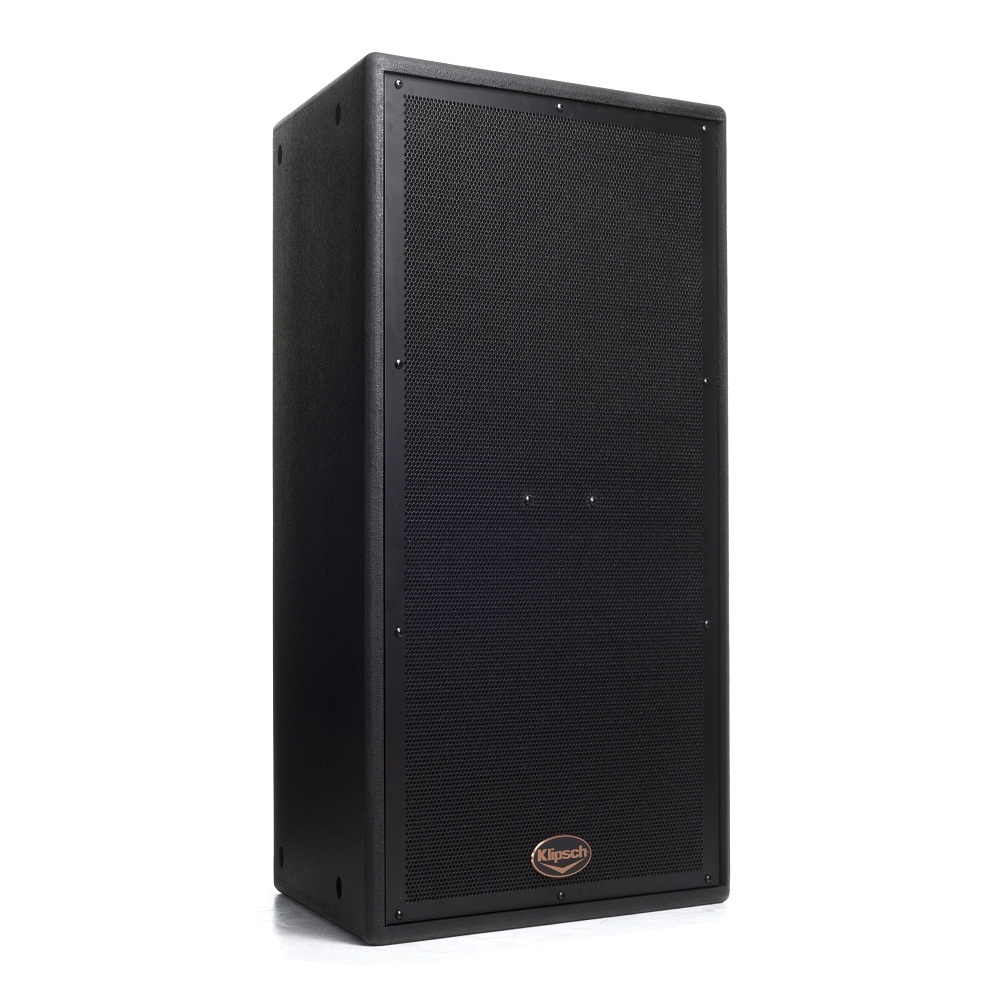

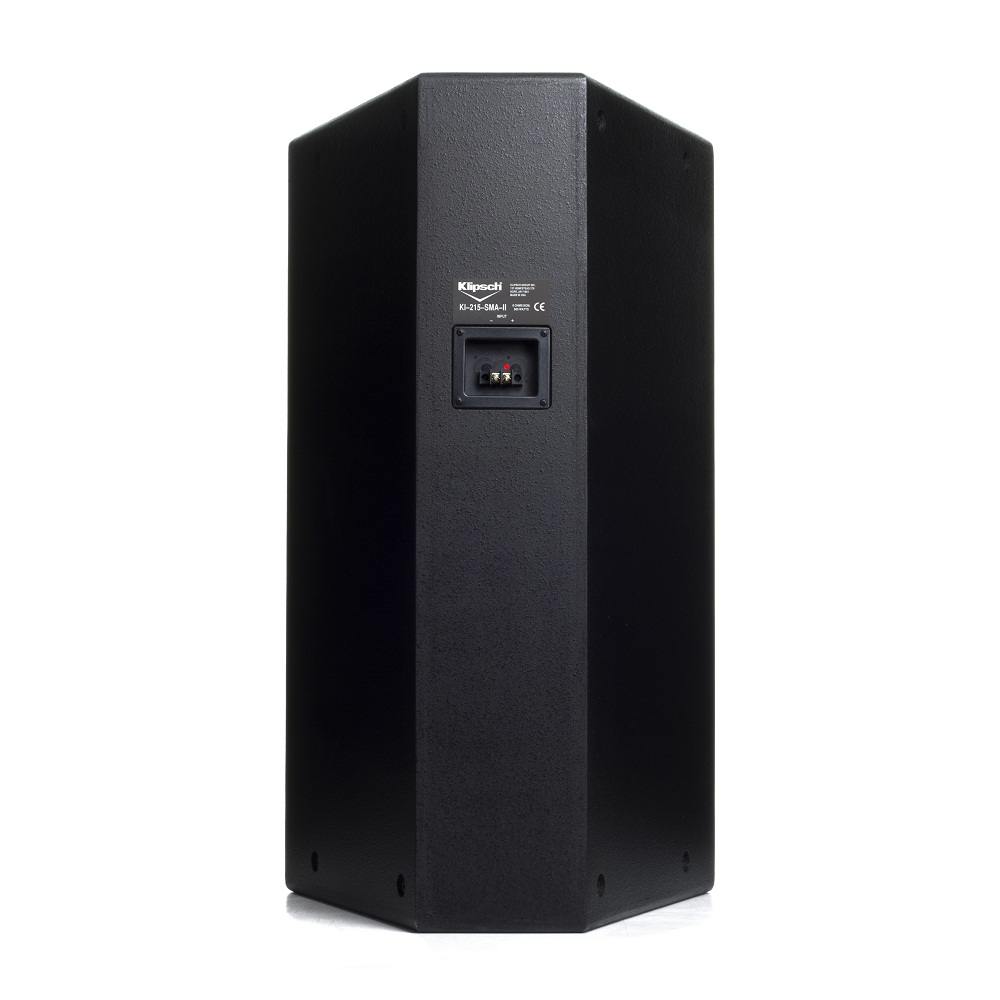

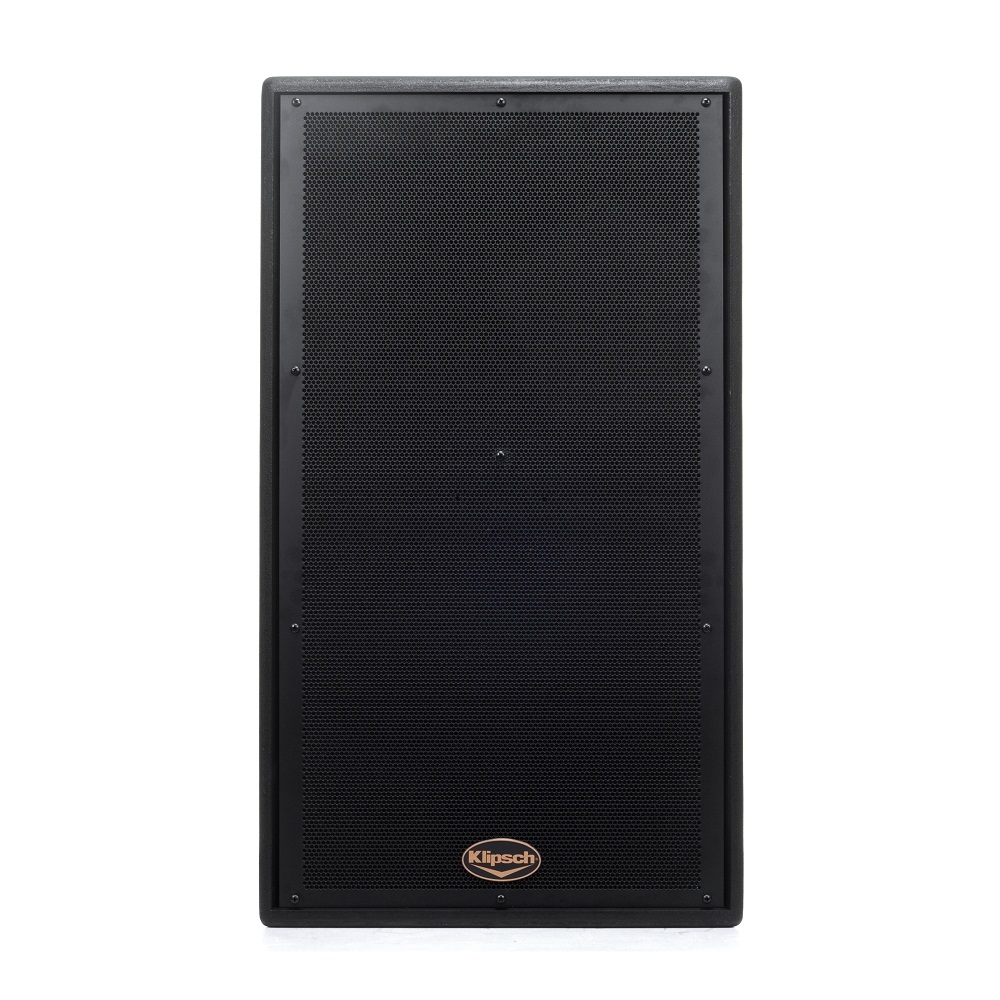

The KI-215-SMA-II trapezoidal array-capable (sixteen built-in 3/8” 16-thread fly points) subwoofer perfectly complements Klipsch’s high power full-range loudspeaker systems. The KI-215-SMA-II’s enclosure dimensions and rigging configuration are identical to the KI-362-SMA-II full-range professional loudspeaker system, making it an ideal match when using an external, active two-way crossover. Its highest-quality heavy-duty drive components use 104-ounce magnets and 3” voice coils as well as proprietary speaker motor assemblies to deliver high sensitivity and advanced power handling capabilities
Ideal for clubs, theaters, auditoriums, churches, and performance halls the plywood construction tuned port enclosure applies CNC fabrication techniques for uniform tolerances and build reliability.
FEATURES

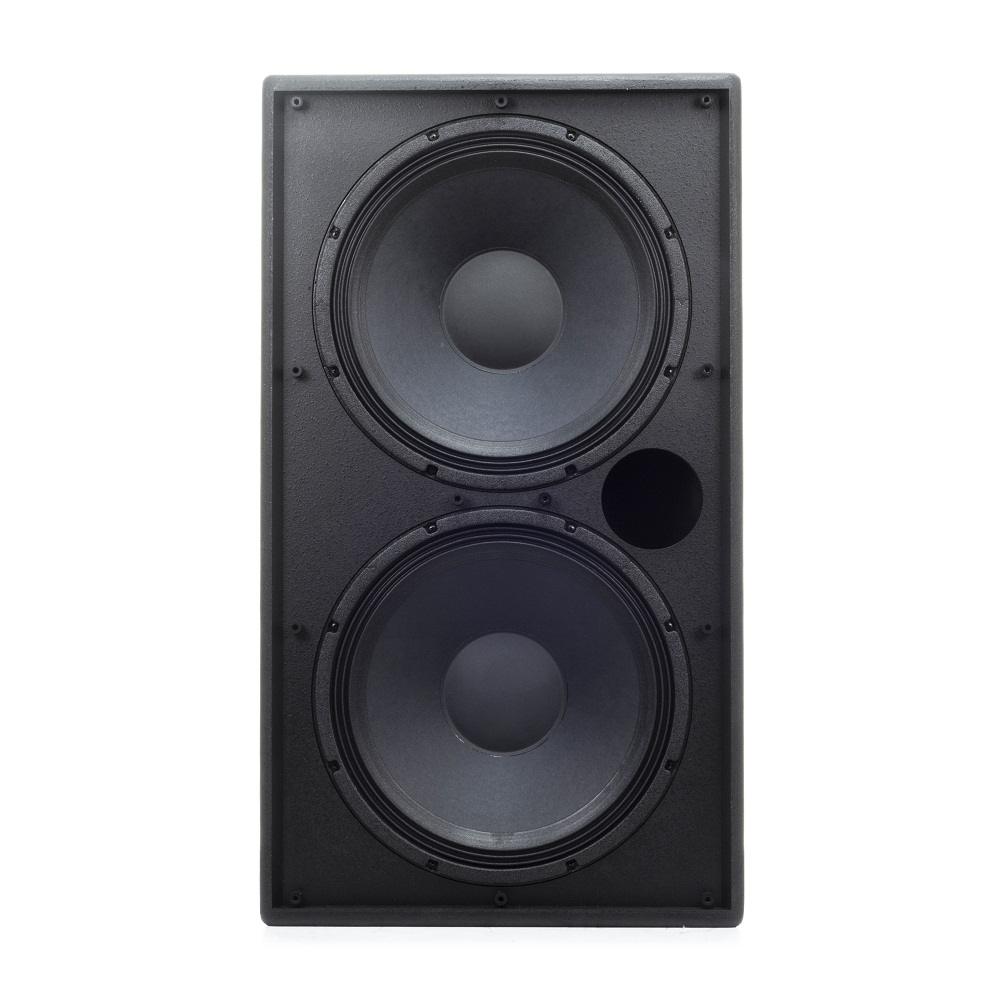

- Dual 15” (38.1cm) cast frame transducers with 3” voice coils
- 130 dB SPL maximum output
- 22.5º symmetrical trapezoidal design makes it an ideal music reinforcement match with the KI-396, KI-262, and KI-272 when using an external, active crossover
- Low 40 Hz cabinet tuning allows electronic EQ to be added for extended response without undue component stress
- 16 suspension points for flexible mounting and rigging bar compatibility
- Available in Black, White or Raw Birch finish
SPECIFICATIONS
- FREQUENCY RESPONSE1 (+/- 3 dB) 70 Hz – 2.4 kHz (-10 dB @ 53 Hz)
- POWER HANDLING2 800 watts (53V) / 3200 watts peak
- MAXIMUM SPL3 130 dB Continuous 136 dB Peak
- SENSITIVITY4 105 dB
- NOMINAL IMPEDANCE 8 ohms, minimum 3.5 ohms @ 42 Hz
- COMPONENTS Two K-45-ST 15” woofers

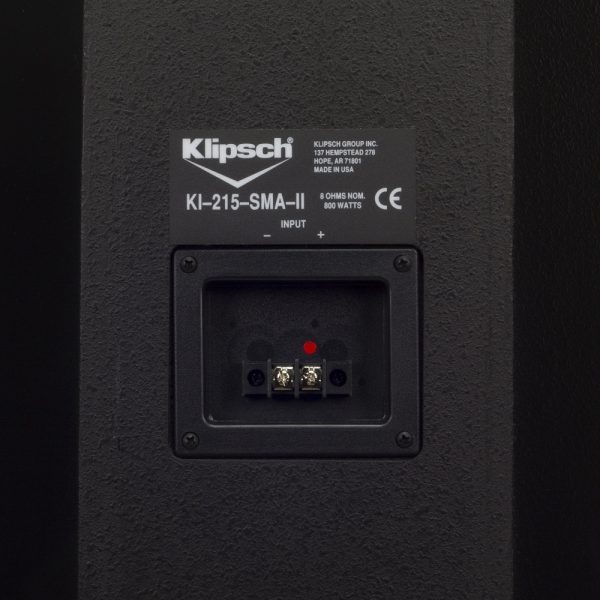

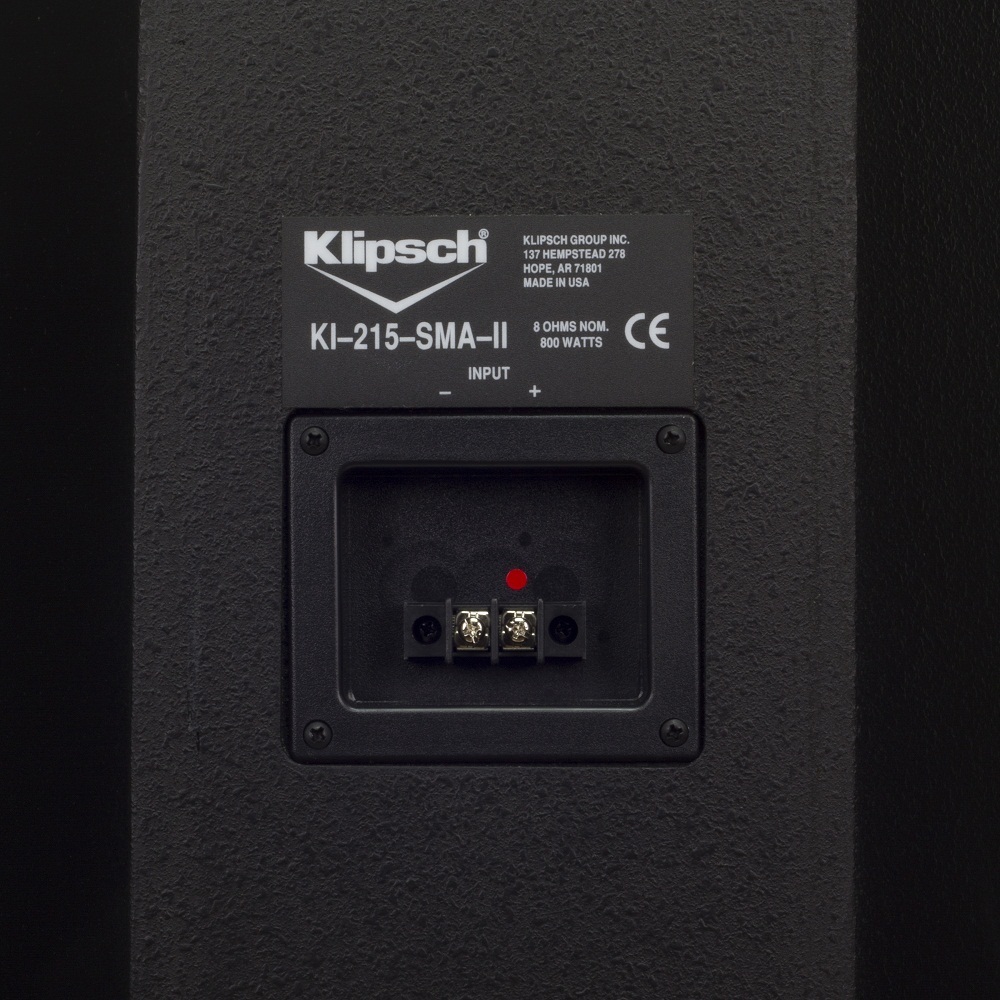

- INPUT CONNECTION Two point barrier strip
- MOUNTING OPTION Sixteen 3/8”-16 flypoints
- BRACKET MOUNT One attachment point for C-bracket , Top and Bottom: 3/8”-16
- ENCLOSURE MATERIAL 3/4″ 7-ply birch plywood cabinet , 1” MDF motorboard
- HEIGHT 34.3” (87.12cm)
- WIDTH 19.8” (50.29cm) front , 6.8” (17.27cm) rear
- DEPTH 16” (40.64cm)
- WEIGHT 81 lbs. (36.82kg)
- FINISHES Black, White and Raw Birch finish
