Product Description

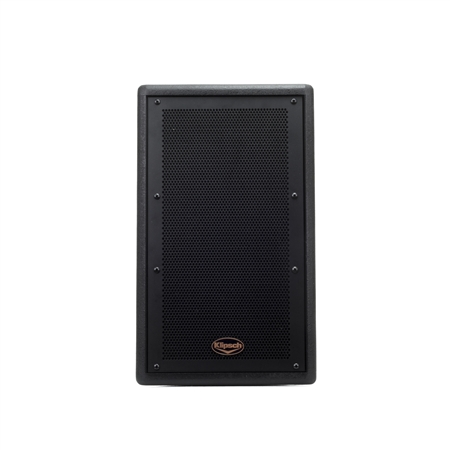

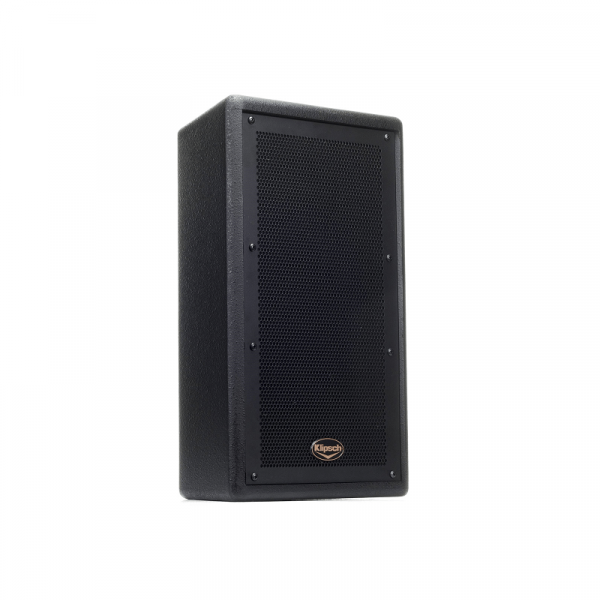

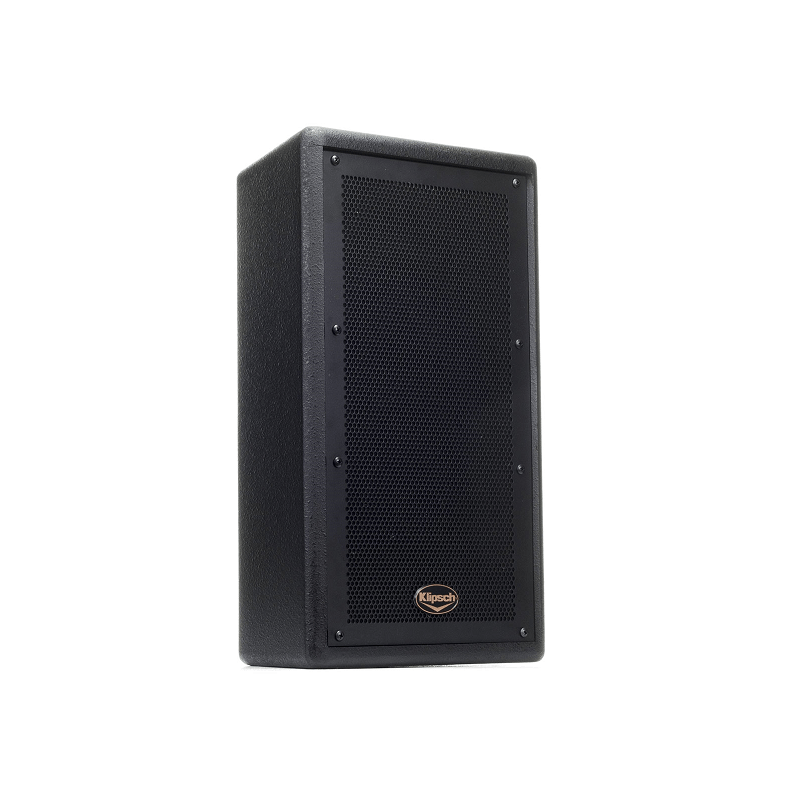

The KI-102-SMA-II two-way trapezoidal loudspeaker is a compact hybrid Tractrix® Horn-loaded speaker system capable of superb voice and music performance in permanent limited-space installations. It is recommended for use in restaurants, clubs, schools, churches, health clubs, and corporate A/V production environments where fidelity requirements are high but real estate is limited.
CNC fabrication techniques dado “lock-tab” and rabbet joint construction contribute to industry leading reliability maximum precision and ruggedness and a cabinet remarkably free from resonance and cabinet-induced coloration. Mounting capabilities include top and bottom attachments for the optional SB-102 “U”-shaped bracket.
- Compact 22.5º symmetrical trapezoidal design
- 113dB maximum continuous output
- 8” (20.32cm) woofer and 1” (2.54cm) titanium diaphragm
- HF compression driver
- 90º X 90º Tractrix® Horn
- KLIP-circuit HF driver protection devices
- Top/Bottom attachments for optional Klipsch SB-102
- U-shaped bracket
- Black finish
Tech Specs

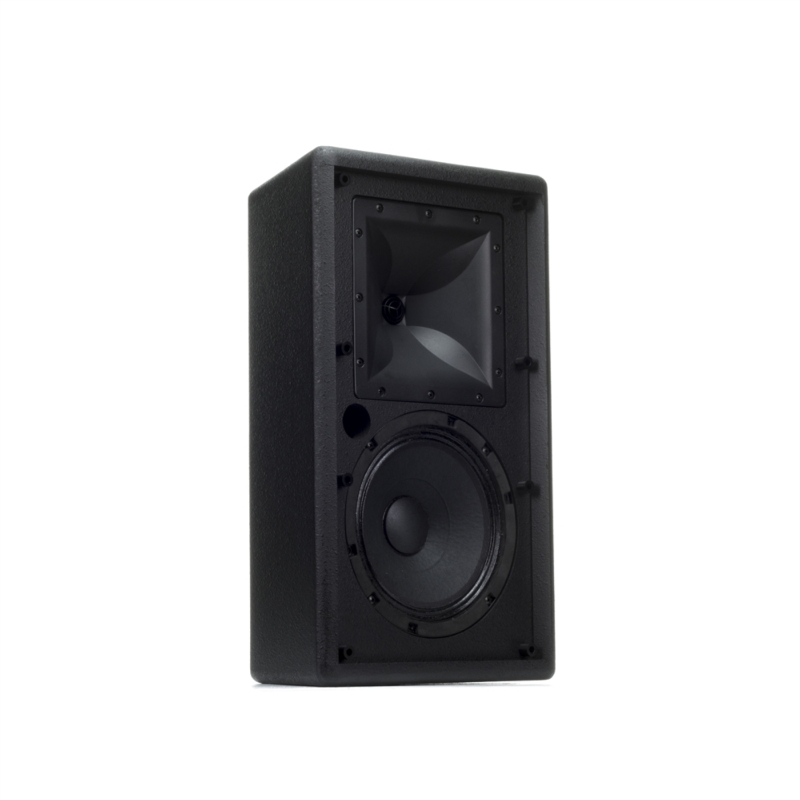

- Components :
- One K-81-ST 8″ woofer
- One K-103-TI-KP 1″ titanium compression driver on a K-802-M horn
- Depth : 233.68 mm
- Depth : 9.20 in
- Height : 480.06 mm
- Height : 18.90 in
- Impedance : 8 ohm
- Overload Protection : KLIP Overload Protection Circuit-HF
- Sensitivity : 95 dB
- Width : 294.64 mm
- Width : 4.2″ (10.67cm) rear
- Width : 11.60 in
- Crossover Frequency : 2 kHz
- Input Connections : Two point barrier strip
- Mounting Options : 2 screw: 1/4″ x 20 Machine screw for SB-102 Bracket
- Power Handling : 60 Watt
- Directivity Factor (Q) : 6.3
- Directivity Index (DI) : 8dB+/-2dB 1kHz-20kHz
- DC Voltage : 70 Volts
- Maximum SPL (Sound Pressure Level) : 115 dB
- Peak Power : 800 Watt
- Product Weight : 10.89 kg
- Product Weight : 24 lbs
- Coverage Horizontal : 90 degrees
- Coverage Vertical : 90 degrees
- Color : Black
- Construction : 3/4″ MDF
- Certifications : CE
- Minimum Frequency Response (Bandwidth) : 88 Hz
- Minimum Frequency Response (Bandwidth) : 0.09 kHz
- Maximum Frequency Response (Bandwidth) : 17000 Hz
- Maximum Frequency Response (Bandwidth) : 17 kHz
- Speaker Diameter (Driver) : 203.20 mm
- Speaker Diameter (Driver) : 8 in
