Product Description
Many of the world’s most recognized brands including Ron Jon Surf Shop and Bloomingdale’s use our commercial speakers to create unique memorable experiences for their customers. Do the same for your business with our top-of-the-line IC-650-T 70-volt speaker.
The IC-650-T packs proven materials and wide dispersion horn technology into an installer-friendly, UL-2043 and 1480 certified loudspeaker with an integrated back can and multi-tap transformer. IC-T Series speakers have been included in a number of major installations nationally, from Bloomingdale’s in New York City to the Ron Jon Surf Shop in Orlando.

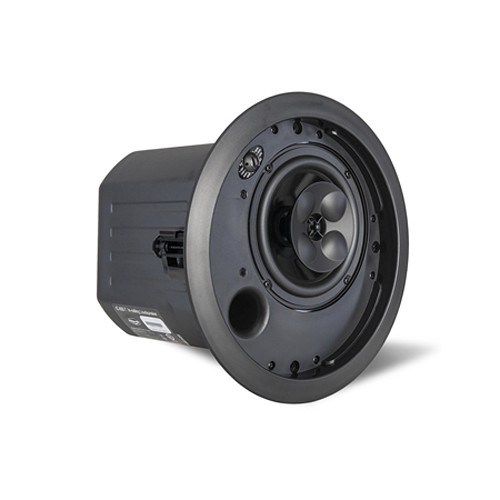

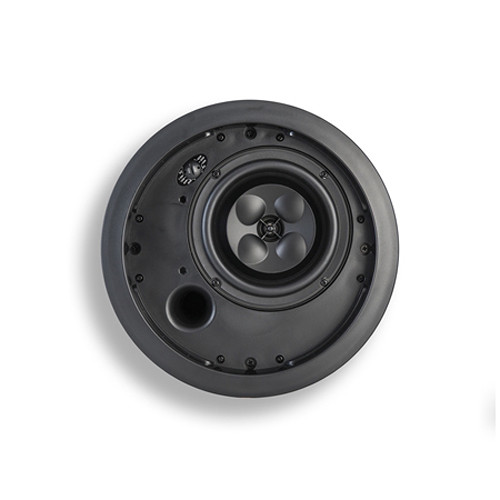

The two-way IC-650-T features a 6.5-inch woofer, and 1-inch titanium diaphragm compression driver on a 3.5-inch round modified XT Tractrix® Horn for smooth response with constant directivity. A Tractrix port design helps to provide deeper, fuller bass with less compression and distortion. A new, more compact design simplifies low ceiling mounting

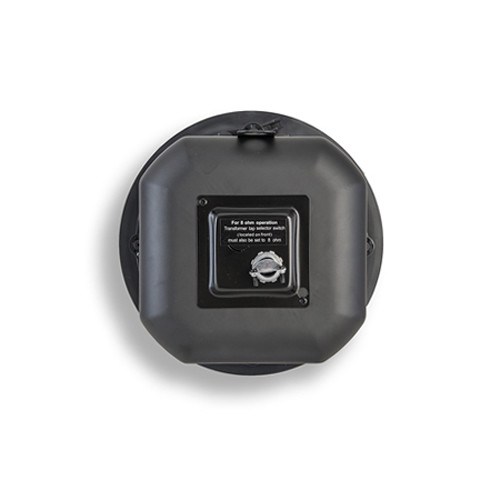

For distributed line applications, the IC-650-T features a 70/100 volt multi-tap transformer. A single rotary switch for the 4-ohm bypass and multi-tap setting is conveniently located under the speaker grille. The IC-650-T is shipped complete with a tile bridge for installation in a suspended ceiling or wherever additional reinforcement of the ceiling material is required.
- Wider, shorter design to fit low ceilings; multi-tap transformer
- 70-volt, 100-volt, or 8-ohm operation selectable via front baffle switch
- Tractrix® Port design for deep bass with less compression
- Wide dispersion Tractrix® Horn tweeter with XT technology for clear sound in any location
- Designed to mix and match with Klipsch CA-T speakers
Specifications
Technical Information | |
---|---|
Crossover Type | 2-way |
RMS Output Power | 80 W |
Driver Type | 1″ Titanium Tweeter
6.50″ Woofer |
Minimum Frequency Response | 50 Hz |
Maximum Frequency Response | 20 kHz |
Impedance | 8 Ohm |
Sensitivity | 90 dB |
Physical Characteristics | |
---|---|
Color | Black |
Form Factor | In-ceiling |
Width | 11.8″ |
Depth | 10.3″ |
Weight (Approximate) | 11.25 lb |
Miscellaneous | |
---|---|
Certifications & Standards |
|
Packaging Info | |
---|---|
Package Weight | 31.0 lb |
Box Dimensions (LxWxH) | 35.0 x 15.0 x 13.0″ |
