Product Description

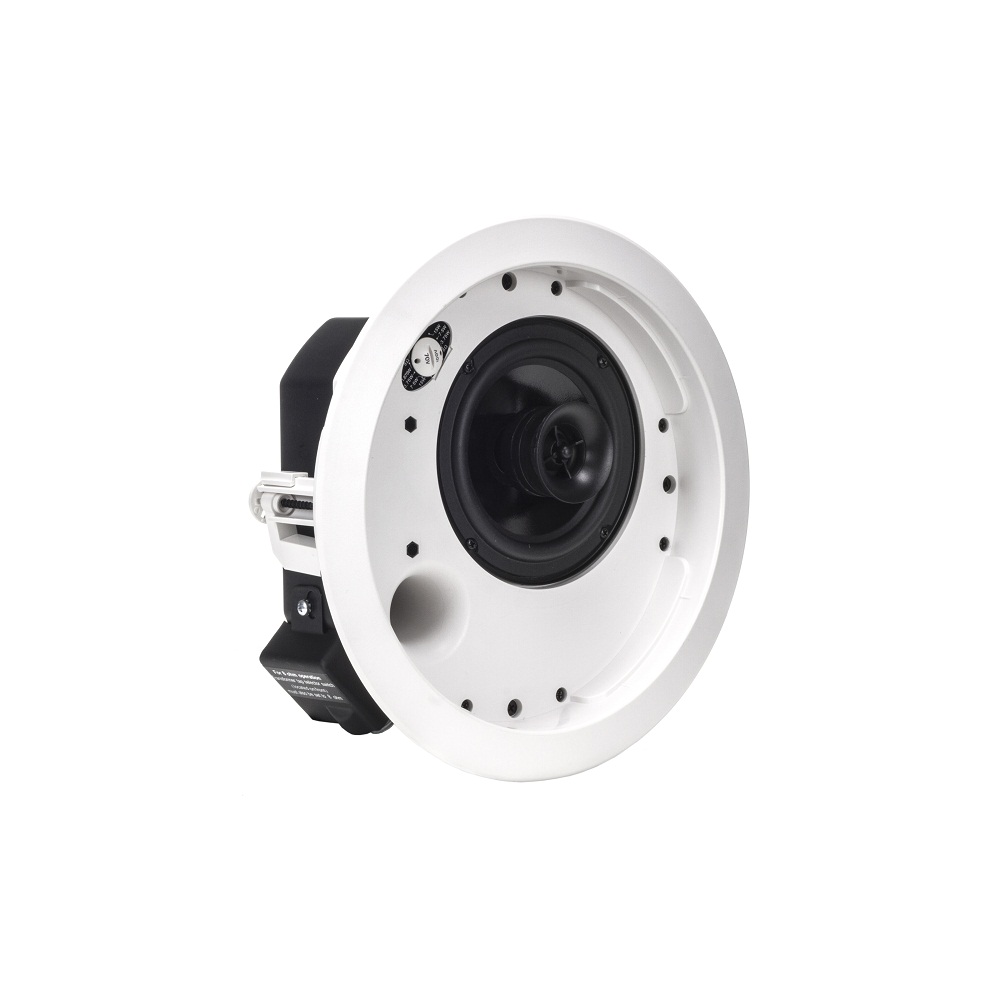

At just over 4” deep, the all-new IC-500-T-SC packs proven materials and wide
dispersion horn technology into an installer-friendly, UL-2043 and UL-1480
certified in-ceiling loudspeaker with an integrated backcan and multi-tap
transformer.

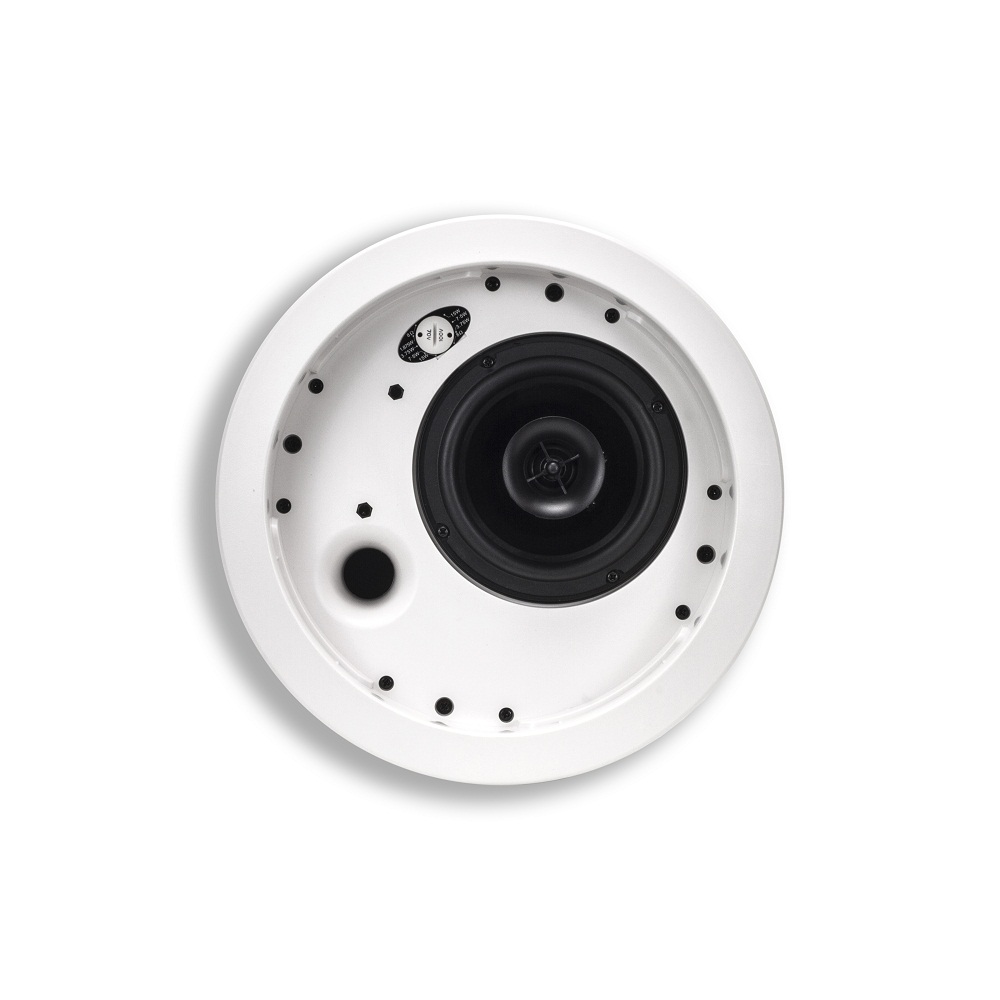

The two-way IC-500-T-SC features a 5” woofer, and a 1”titanium diaphragm
compression driver on a 2” round Tractrix® horn for smooth response with
constant directivity. A Tractrix port design helps to provide deeper, fuller bass
with less compression and distortion.
For distributed line application, the IC-500-T-SC features a 15 watt, 70/100 volt
multi-tap transformer. A single rotary switch for the 8-ohm bypass and multi-tap

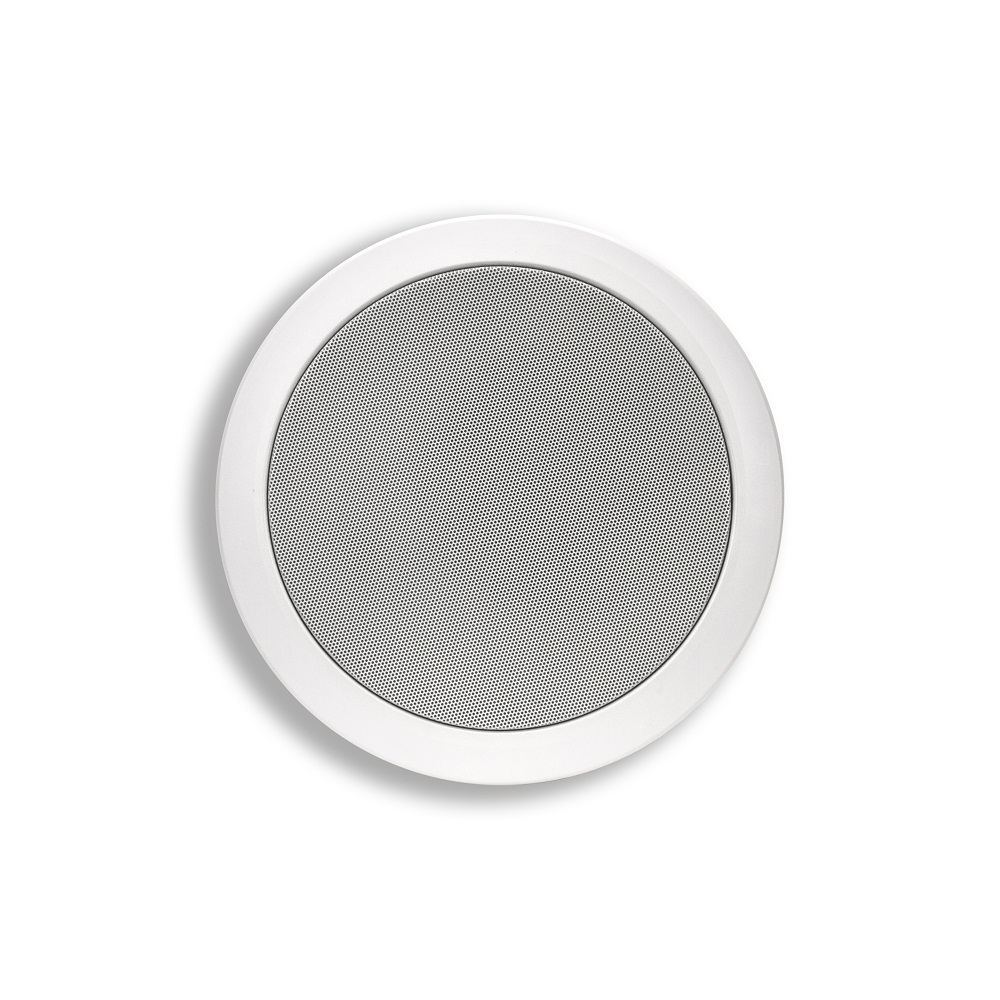

setting is conveniently located under the speaker grille. The IC-500-T-SC is shipped
complete with a tile-bridge for installation in a suspended ceiling or wherever
additional reinforcement of the ceiling material is required.
SPECIFICATIONS
| Weight | 2.5 kg |
|---|---|
| Specifications | – FREQUENCY RESPONSE1 (+/- 4 dB) 95 Hz – 20 kHz
– POWER HANDLING2 50 watts (14.5V) – 200 watts peak – MAXIMUM SPL3 101 dB Continuous – 107 dB Peak – SENSITIVITY4 87 dB – COVERAGE ANGLE 80º – DIRECTIVITY INDEX (DI) 8 dB – DIRECTIVITY FACTOR (Q) 6.3 – NOMINAL IMPEDANCE 8 ohms – 4.2 ohm minimum – COMPONENTS One 5″ (12.7cm) woofer – 1” (2.54cm) Titanium diaphragm – compression driver – INPUT CONNECTION Terminal Strip – TAP SETTINGS 70V: 15w, 7.5w, 3.8w, 1.9w – 100V: 15w, 7.5w, 3.8w – ENCLOSURE TYPE Bass-reflex via Tractrix port – SAFETY AGENCY RATING UL-1480, UL-2043 – WIRE GAUGE ACCOMMODATED 14 AWG – CUTOUT DIMENSIONS 9.125” (23.2cm) diameter – MOUNTING DEPTH 4.125” (10.5cm) – OVERALL DEPTH 4.375” (11.1cm) – OVERALL WIDTH 10.75” (27.3cm) diameter – THRU HOLE WIDTH 9” (22.8cm) – WEIGHT 5.5 lbs. (2.5kg) – FINISHES White/Paintable – ACCESSORIES Mud Ring Kit (PN: 101041 |
