Product Description

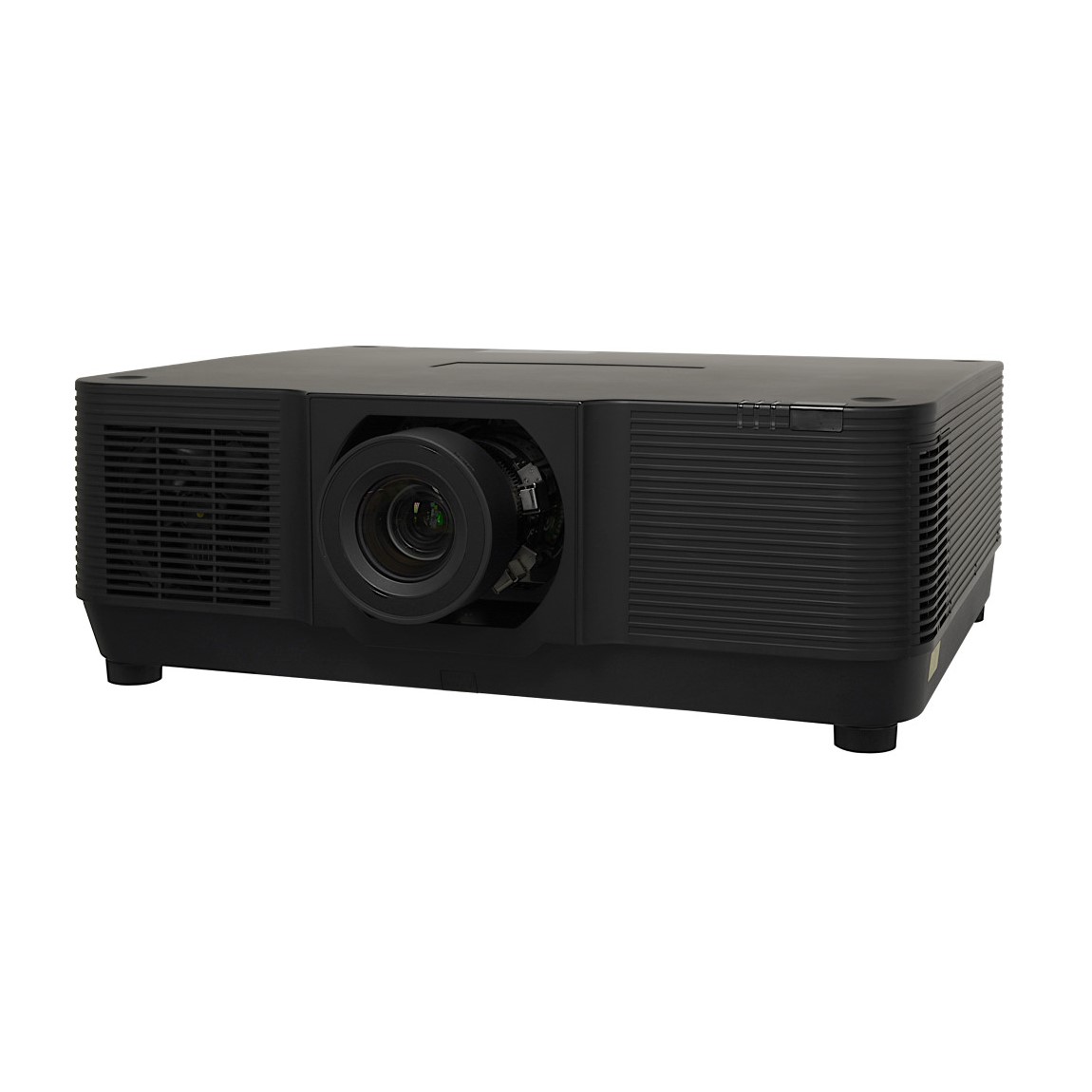

The Eiki EK-1300LU is an advanced laser projector that delivers exceptional image quality and reliability for a wide range of applications. With its high brightness and superior resolution, this projector is designed to meet the needs of both professional and educational environments. The EK-1300LU boasts impressive specifications that make it an ideal choice for large venues, classrooms, and conference rooms, providing vibrant colors and sharp details with every projection.
Featuring a state-of-the-art laser light source, the EK-1300LU offers long-lasting performance and consistent brightness over time. This ensures that your presentations and visual content remain clear and impactful without the need for frequent lamp replacements. The projector’s advanced cooling system also contributes to its reliability, allowing for uninterrupted operation even during extended use. Additionally, its user-friendly interface and versatile connectivity options make it a convenient and adaptable solution for various setup requirements.
The Eiki EK-1300LU is designed with ease of maintenance in mind, featuring accessible filters and a robust build that can withstand the demands of frequent use. Whether you’re delivering a high-stakes presentation or engaging students in an interactive lesson, the EK-1300LU provides the performance and durability needed to ensure a seamless experience. Its sleek design and compact size also make it a practical choice for both portable and fixed installations. *Please note that lens are NOT included.
Key Features
- High Brightness: Delivers clear, bright images even in well-lit environments.
- Laser Light Source: Long-lasting performance with minimal maintenance.
- High Resolution: Sharp and detailed visuals for professional and educational use.
- Advanced Cooling System: Ensures reliable operation and longevity.
- Versatile Connectivity: Compatible with a range of devices for easy integration.
- User-Friendly Interface: Simple controls and setup for convenience.
Technical Specifications
Model
EK-1300LU
Brightness
13,000 Center Lumens
Contrast Ratio
100,000:1
Illumination Uniformity
80%
Resolution and Aspect Ratio
WUXGA (1920×1200), 16:10
Color Reproduction
10-bit (16.7 million colors)
Projection Light Source
Laser (Blue) + Phosphor
Estimated Light Source Life
20,000 hours
Total Pixels
6,912,000 (1920×1200) x 3
Imaging System
0.76″ in (19 mm) inorganic LCD Panels x 3
Scanning Frequency
Auto: H Sync. 15-100 KHz, V Sync. 48-85 Hz
Pixel Clock
Up-to 160 MHz
Lens (not included)
Optional Lenses Available – See lens chart
Image Diagonal
50-500 in (127-1270 cm)
Image Width
3.5-35.3 ft (1.1-10.8 m)
Throw Distance
2.8-248.0 ft (0.85-75.8 m)
Lens Shift
V: -10%~+50% H: +/- 20%
Projector Elevation Adjustment (legs)
Up-to 1°
Maximum Pitch
Up-to 360°
Vert/Horiz. Keystone Correction
Digital: V: +/- 30° H: +/- 30°, Corner Keystone
Image Orientation
Normal, Reversed, Inverted
Local Control / Power Management
Full Function / Auto Shutdown
Remote Control
Wireless / Wired x 2 (In/Out)
RS-232 Control
Dsub9 x 1
LAN Port
RJ45 x 1
Computer Input in Pixels
Up-to 1600×1200 (4:3), 3840×2160 (16:9)
Analog 4×3 Inputs
UXGA, SXGA+, SXGA, XGA, SVGA, VGA
Analog Wide Inputs
WUXGA, WSXGA+, WXGA
Digital 4×3 Inputs
UXGA, SXGA+, SXGA, XGA, SVGA, VGA
Digital Wide Inputs
4K, WUXGA, WSXGA+, WXGA
Video Formats
NTSC / PAL / SECAM
Video Input Analog
480i/p, 576i/p
Video Input Digital
480p, 576p, 720p, 1080i/p
Image Signal Resizing
Smart Scaling Technology
Image Signal Inputs
Computer: 1 Dsub15 x 1
Digital Video (w/ HDCP)
HDMI x 2
Digital Video (w/ HDCP)
DVI-D x 1
HDBaseT
RJ45 x 1
3G-SDI
BNC x 1
USB-A – Memory Viewer
USB Type A x 1
USB-B – USB Display / Firmware
USB Type B x 1
Audio Signal Inputs
Computer Audio MiniStereo x 1
Outputs
Digital Video HDMI x 1
Computer Out
Dsub15 x 1
Audio Output
Variable, Stereo: MiniStereo x 1
Fan Noise (Eco / Normal)
40 dB / 43 dB
Cabinet Size (HxWxD) – excluding legs
8.6 x 23.6 x 19.8 in (21.8 x 60.0 x 50.3 cm)
Installation Weight – without lens
52.9 lb (24.0 kg)
Packaged Cabinet Size (HxWxD)
14.2 x 28.9 x 24.9 in (36.0 x 73.5 x 63.2 cm)
Packaged Weight
61.7 lb (28.5 kg)
Operating Temperature
41-104°F (5-40°C)
Electrical Safety Compliance
IEC / UL / cUL
Electromagnetic Compatibility
FCC Class B, CE Mark
Power Requirements
100-240V AC, 50/60 Hz
Power Consumption
0.5 W in Eco Standby mode, up-to 960 W
Heat
3,276 BTU
Security Facilities
Kensington® Security Slot
Limited Warranty
Projector *3 years / 6,000 hours to the original end use customer only
Laser Light Engine only
*3 years / 20,000 hours use (whichever occurs first)
